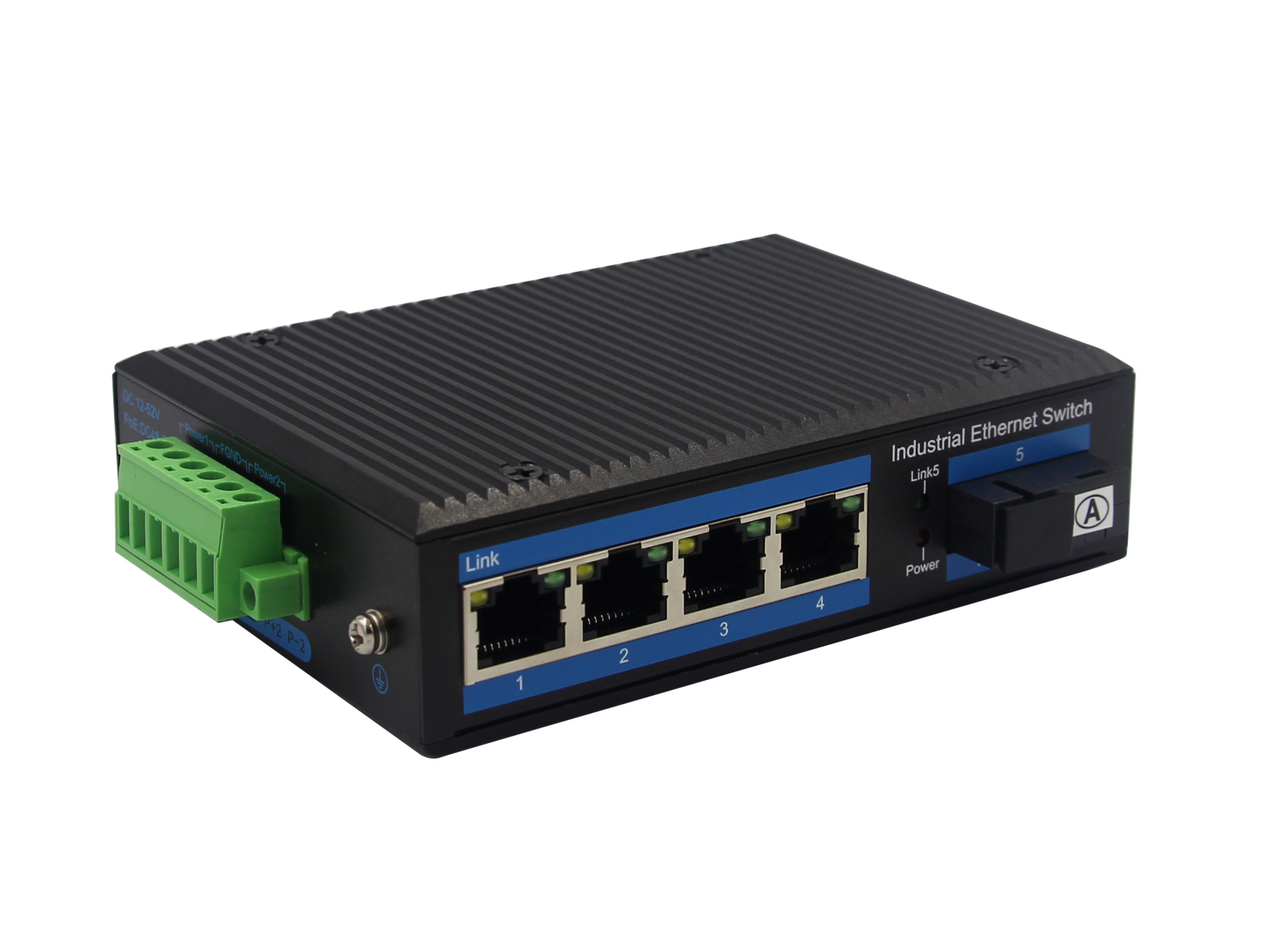

FOWAY4505PF-YH

4-Port 10/100/1000BASE-TX+1-Port 1000Base-FX Industrial PoE Switch






Slim Type with more Practicability and Convenience

FOWAY4505PF-YH an hardened 5-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100/1000BASE-TX RJ45 PoE +1-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 85.



The FOWAY4505PF-YH series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.



The FOWAY4505PF-YH series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


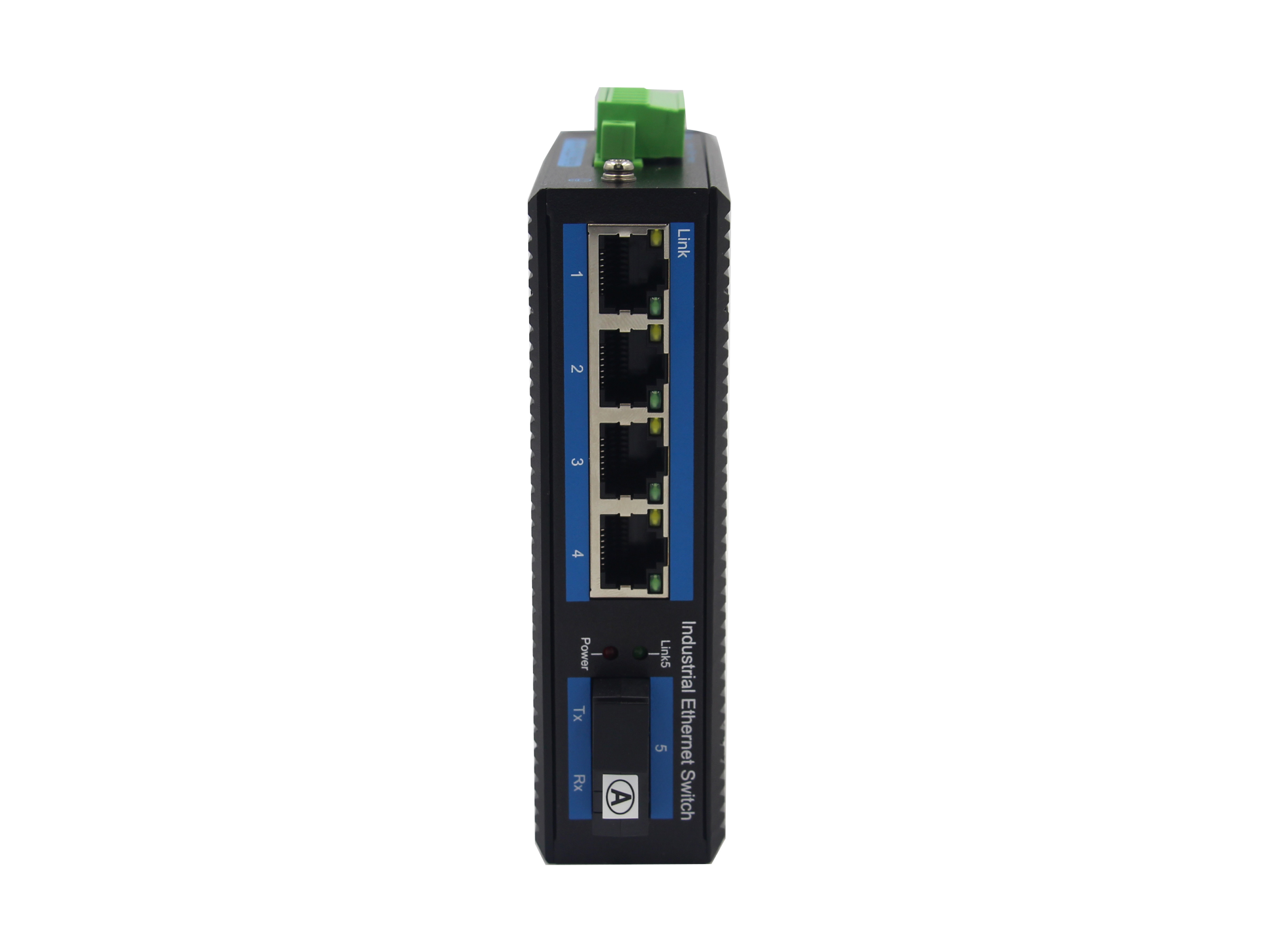

Interface

• 4-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF

• 1-port 1000Base-Fx interface

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km



 Industrial conformance

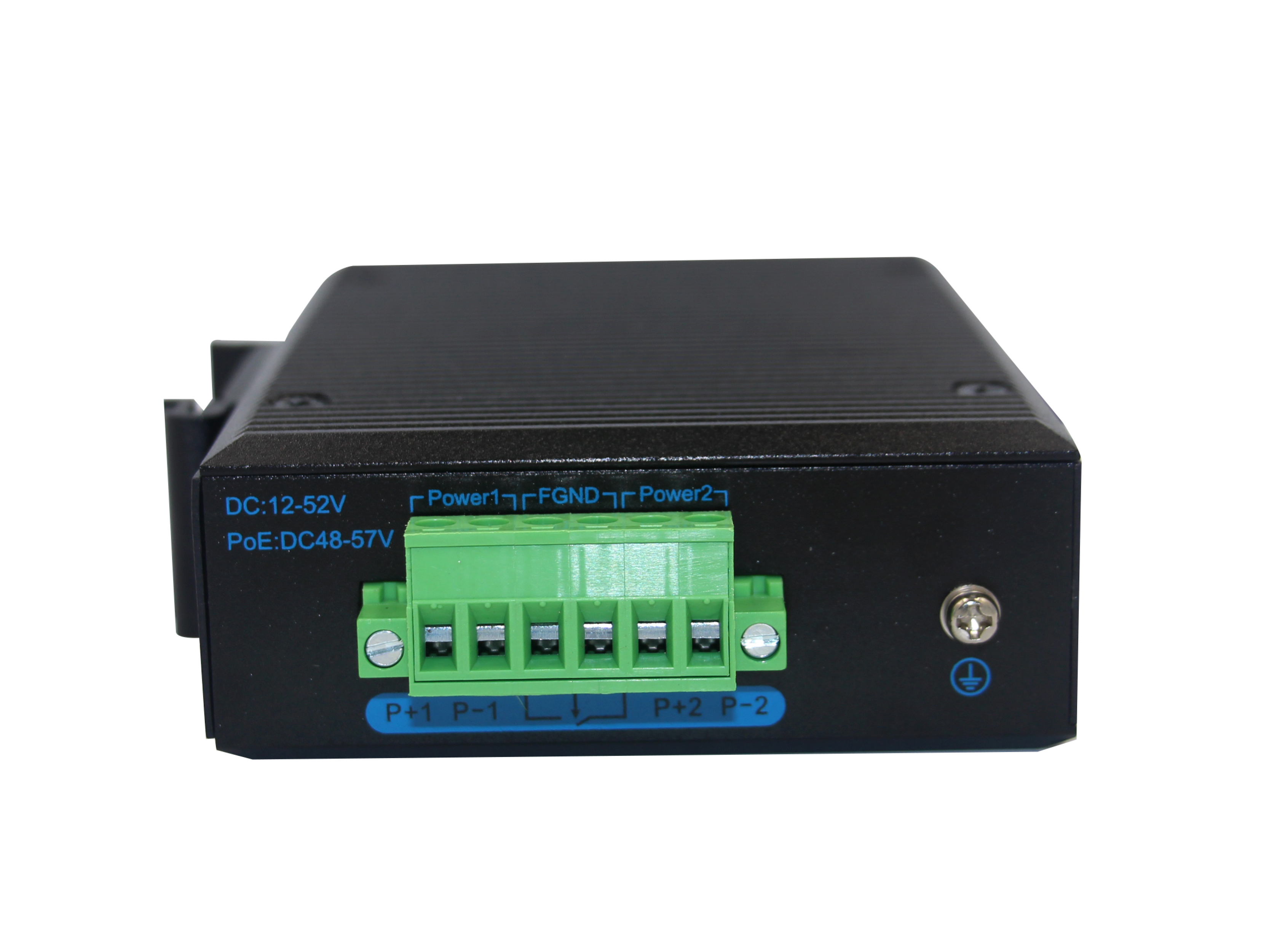

• 48V to 57V DC, redundant power input

• -40 to 85 operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

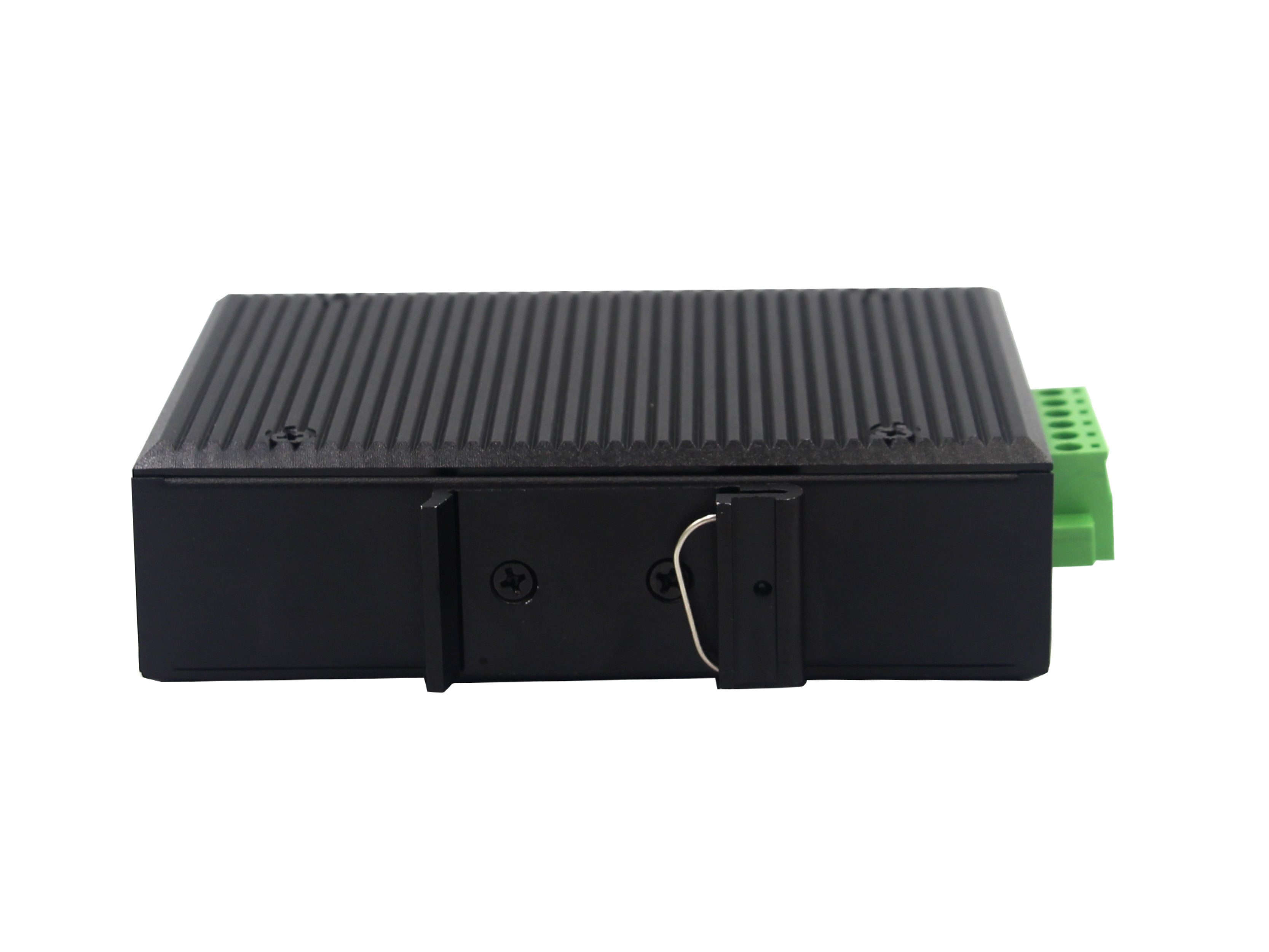

• DIN-rail design

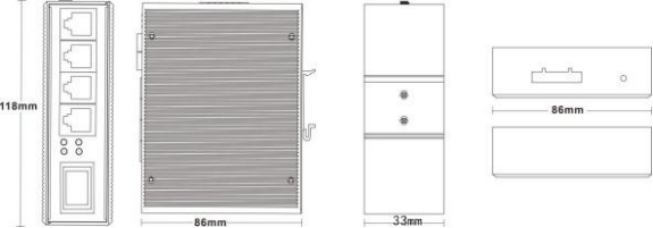

Dimensions


Specifications:

Model No.

FOWAY4505PF-YH-SC2 / FOWAY4505PF-YH-SC20

10/100/1000Base-TX Port

4-Port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-4 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

FOWAY4505PF-YH-SC2: 1 SC interface

FOWAY4505PF-YH-SC20: 1 SC Interface

Fiber Port Type

FOWAY4505PF-YH-SC2: SC / multi-mode ,up to distance 2km ;

FOWAY4505PF-YH-SC20: SC / single-mode ,up to distance 20km ;



Optical Frequency

1310nm 1490nm 1550nm



Performance Specification

Bandwidth: 14Gbps
Packet Buffer Memory:1.2Mbit
Packet Forwarding Rate:10.5Mpps
MAC Address Table: 2K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input

48 to 57V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

118 x 86 x 33.5 mm

Weight

Product Weight: 0.36KG    Packing Weight: 0.46KG

Working Environment



Working temperature: -4085 ;

Storage temperature: -4085

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.


Ordering Information

FOWAY4505PF-YH-SC2

4-Port 10/100/1000Base-TX (PoE) + 1000Base-FX ,Multi-Mode (1310nm) ,Duplex,SC 2km

FOWAY4505PF-YH-SC20

4-Port 10/100/1000Base-TX (PoE) + 1000Base-FX ,Single-Mode (1310nm) ,Dual,SC 20km

FOWAY4505PF-YH-SC20/A

4-Port 10/100/1000Base-TX (PoE) + 1000Base-FX,Single-Mode (Tx1310nm/Rx1550) ,Single,SC 20km

FOWAY4505PF-YH-SC20/B

4-Port 10/100/1000Base-TX (PoE) + 1000Base-FX,Single-Mode (Tx1550nm/Rx1310) ,Single,SC 20km

FOWAY4505PFS-YH-SFP

4-Port 10/100/1000Base-TX (PoE) + 1000Base-FX, (SFP Slot)

Power supply

(optional)

YH54825-DC

DC 48V/2.5A,120W suitable for PoE 1-8 port

YH55223-DC

DC 52V/2.3A,120W suitable for PoE 1-8 port
