FOWAY4505TF-YH
4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch
Slim Type with more Practicability and Convenience
FOWAY4505TF-YH an hardened 5-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100/1000BASE-TX RJ45 +1-port 1000Base-Fx delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
The FOWAY4505TF-YH series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The FOWAY4505TF-YH series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Interface
• 4-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
• 1-port 1000Base-Fx interface
• Multi-Mode up to 2km
• Single-Mode up to 20km/40km/60km/80km
Industrial conformance

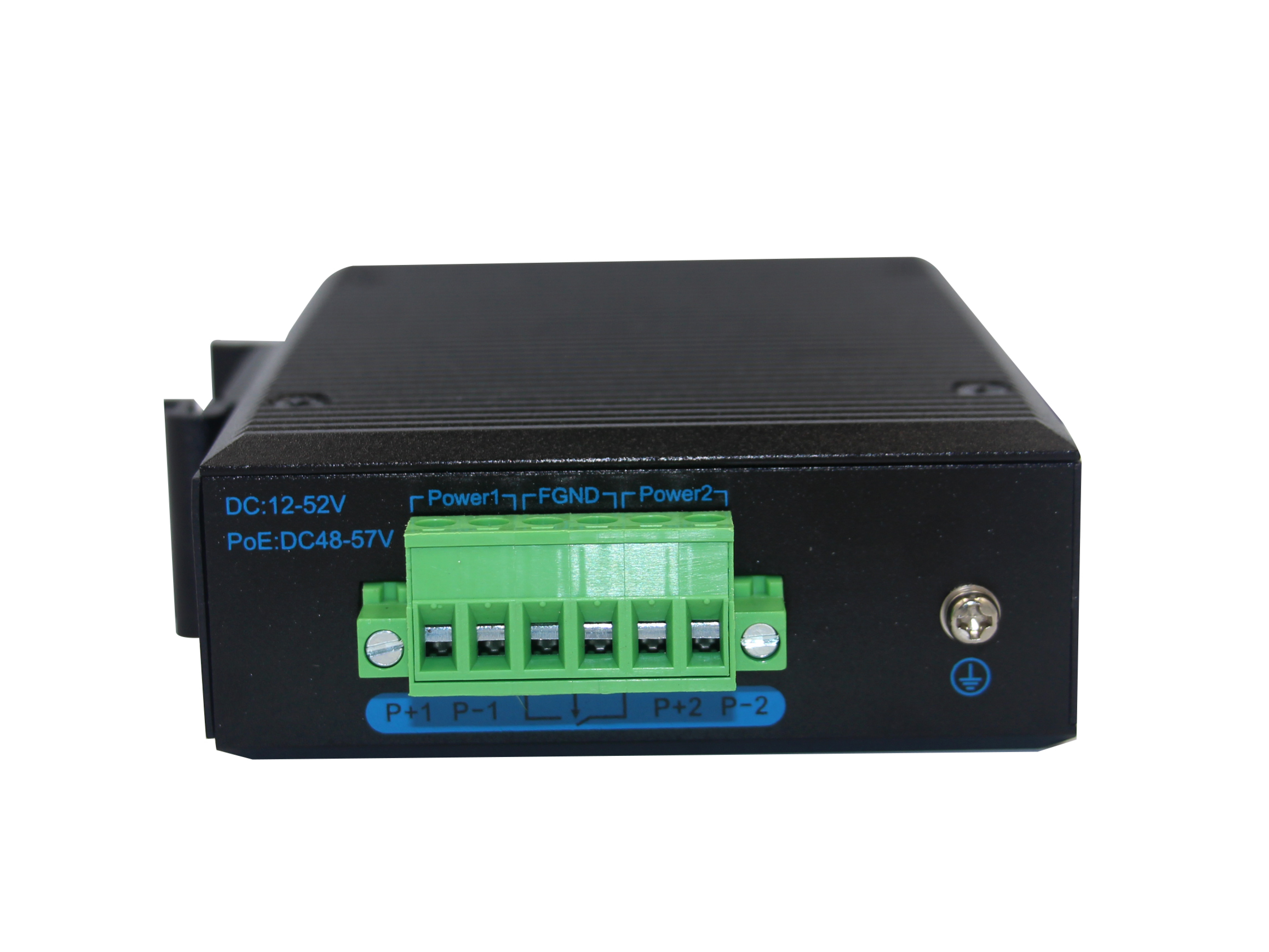

• 12V to 52V DC, redundant power input
• -40℃ to 85℃ operating temperature
• IP40 aluminum housing
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for power line
• Free Fall, Shock and Vibration Stability
• DIN-rail and wall-mountable hardware design

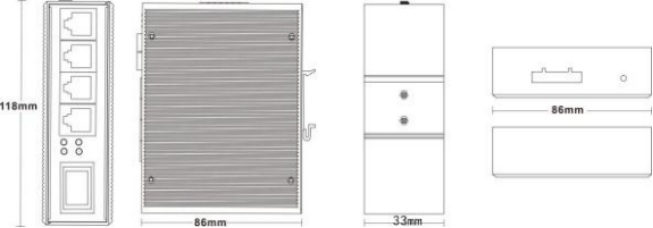

Dimensions
TOP
