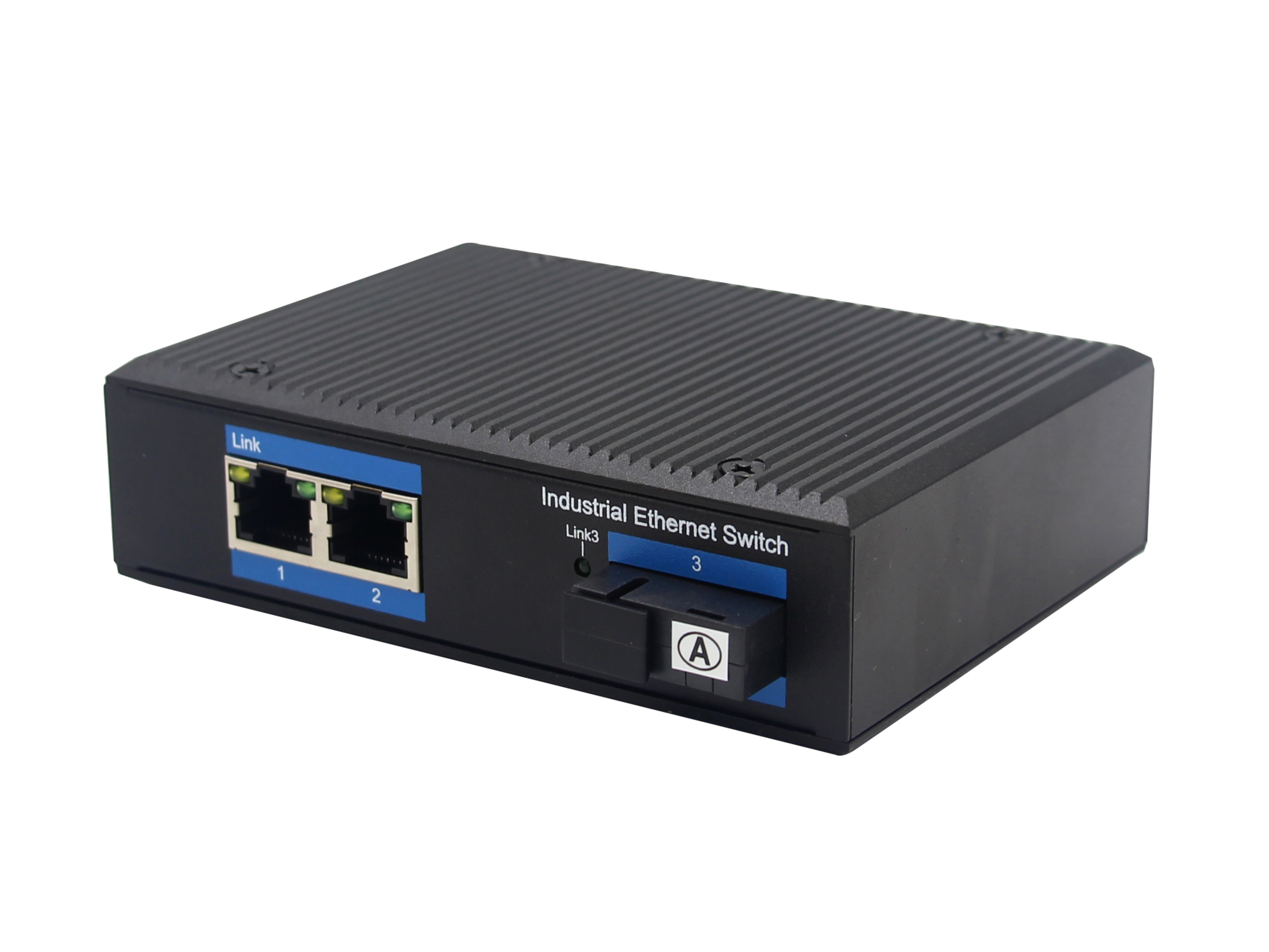

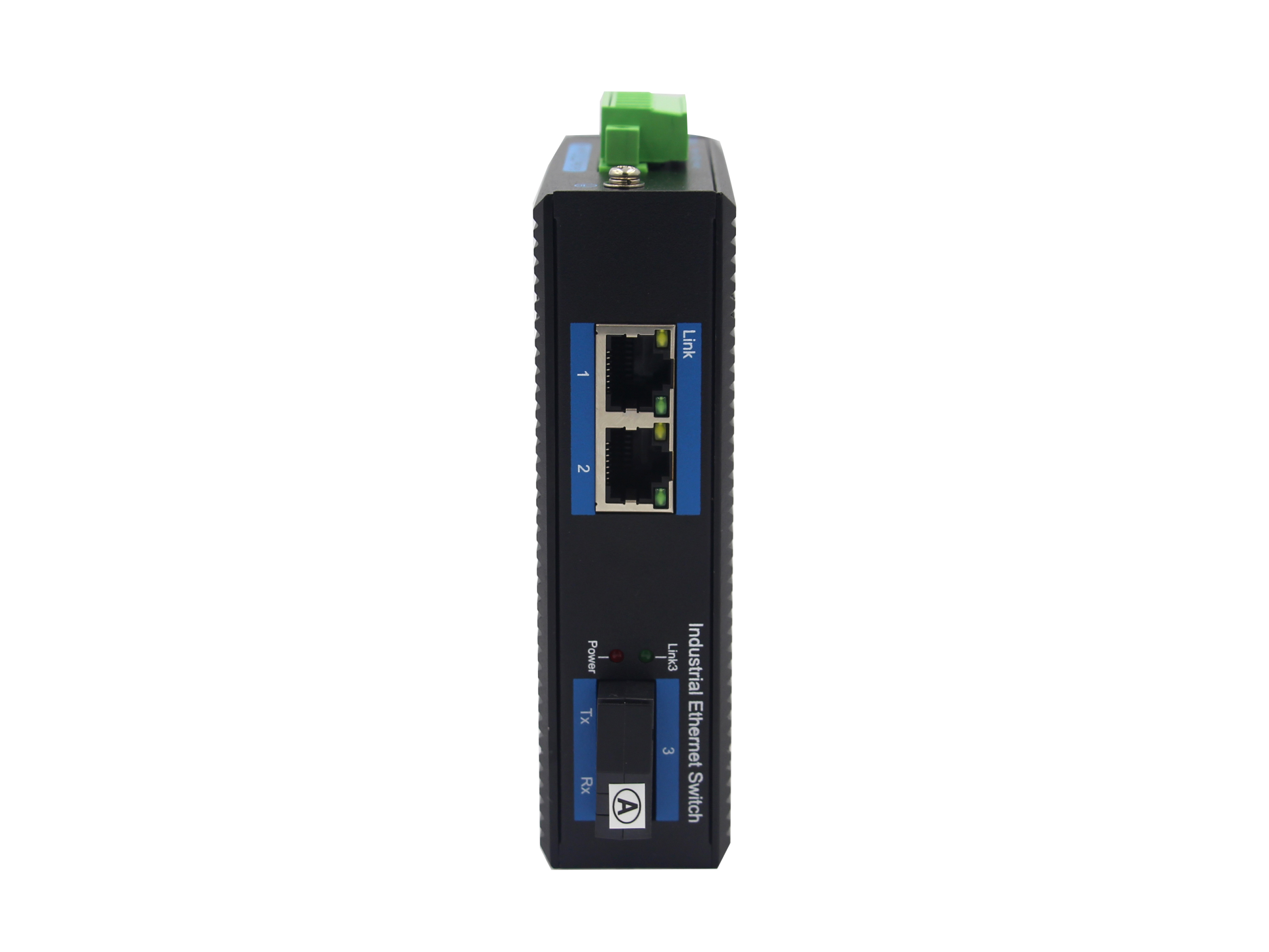

2 ports 1000M poe Din rail Switch

•2-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF •1-port 1000Base-Fx interface •Multi-Mode up to 2km •Single-Mode up to 20km/40km/60km/80km

Version:FOWAY4503PF-YH

Color:Black

Battery:12 to 52V DC redundant power

Function:Poe Switch

Accessories:Plug,Power

Online consultation

Service hotline::

0086-0755-83128820

Product Description Specification


FOWAY4503PF-YH

10/100/1000Base-TX (PoE) to 1000Base-FX Industrial Media Converter






Distance extending Slim Type with more Practicability and Convenience

Hio Link 10/100/1000Base-TX(PoE) to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the FOWAY4503PF-YH  P-SC2, up to 20km with the FOWAY4503PF-YH  -SC20 .

The FOWAY4503PF-YH   series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under   the temperature range from -40 to 85 allows the FOWAY4503PF-YH   series to be placed in almost any difficult environment.

Hio Link FOWAY4503PF-YH   10/100/1000Base-TX to 1000Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000Base-TX and 1000Base-FX network. The FOWAY4503PF-YH   series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

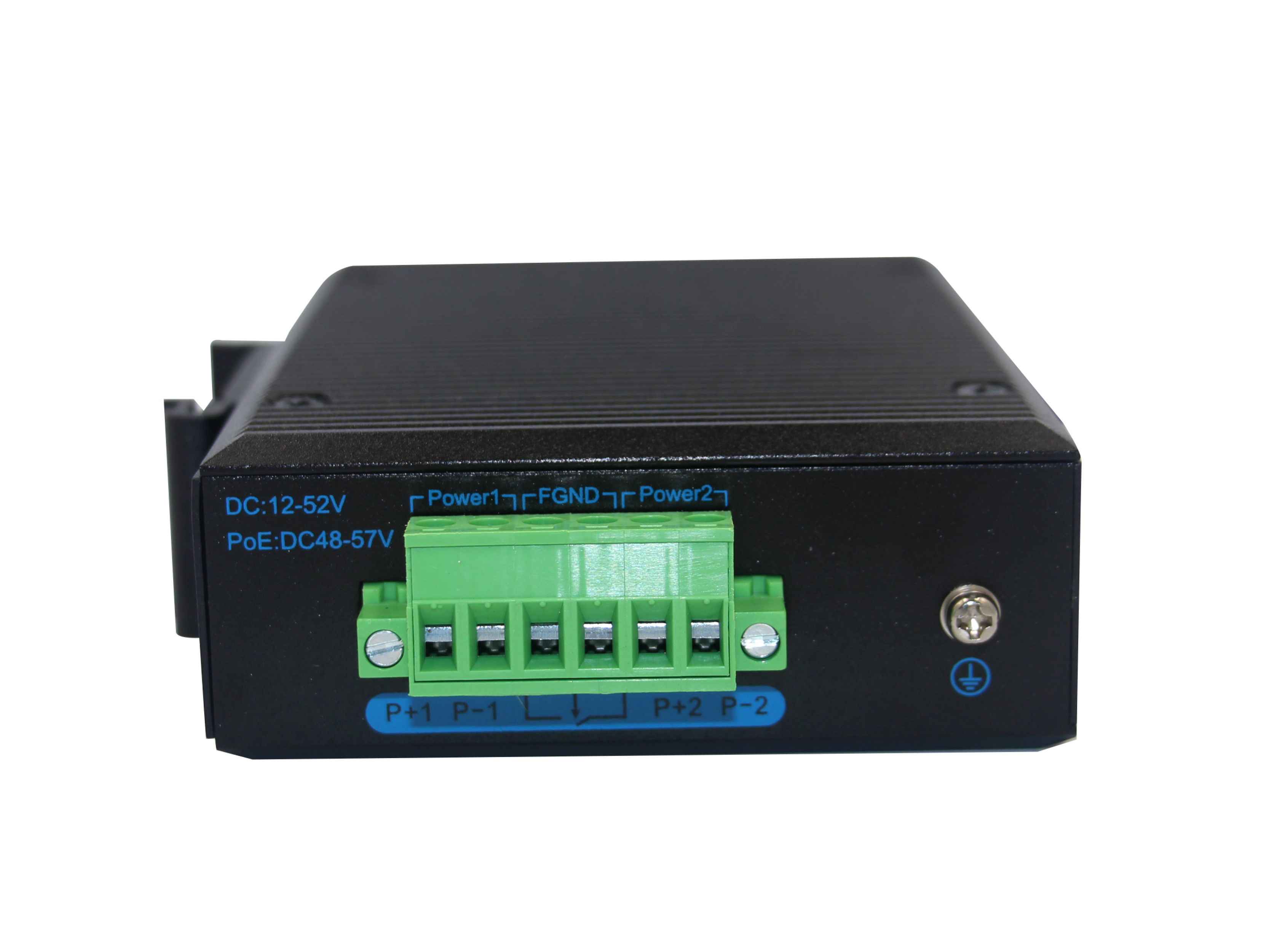

The FOWAY4503PF-YH   series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Interface

• 2-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF

• 1-port 1000Base-Fx interface

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km


Industrial conformance

• 48V to 57V DC, redundant power input

• -40 to 85 operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

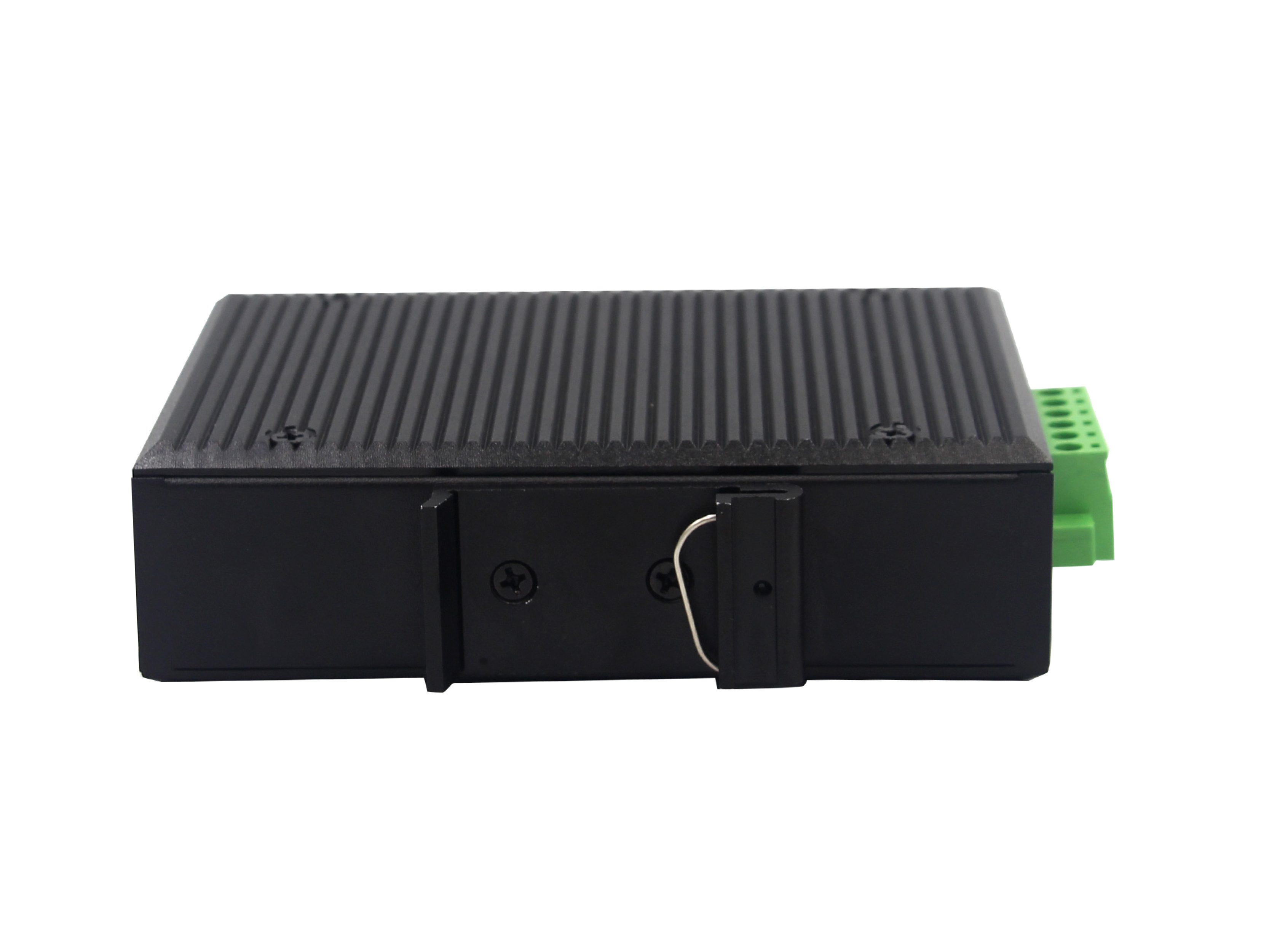

• DIN-rail design、

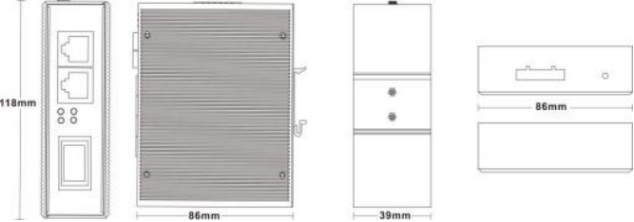

Dimensions


Specifications:

Model No.

FOWAY4503PF-YH  -SC2 / FOWAY4503PF-YH  -SC20

10/100/1000Base-TX Port

2 port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-2 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

FOWAY4503PF-YH  -SC2: 1 SC interface

FOWAY4503PF-YH  -SC20: 1 SC Interface

Fiber Port Type

FOWAY4503PF-YH  -SC2: SC / multi-mode ,up to distance 2km ;

FOWAY4503PF-YH  -SC20: SC / single-mode ,up to distance 20km ;

Optical Frequency

1310nm 1490nm 1550nm



Performance Specification

Bandwidth: 14Gbps
Packet Buffer Memory:1.2Mbit
Packet Forwarding Rate:10.5Mpps
MAC Address Table: 2K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input

48 to 57V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

118 x 86 x 33.5 mm

Weight

Product Weight: 0.36KG    Packing Weight: 0.46KG

Working Environment



Working temperature: -4085 ;

Storage temperature: -4085

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.


Ordering Information

FOWAY4503PF-YH  -SC2

2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX ,Multi-Mode (1310nm) ,Duplex,SC 2km

FOWAY4503PF-YH  -SC20

2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX ,Single-Mode (1310nm) ,Dual,SC 20km

FOWAY4503PF-YH  -SC20/A

2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX,Single-Mode (Tx1310nm/Rx1550) ,Single,SC 20km

FOWAY4503PF-YH  -SC20/B

2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX,Single-Mode (Tx1550nm/Rx1310) ,Single,SC 20km

FOWAY4503PFS-YH  -SFP

2-Port 10/100/1000Base-TX (PoE) to 1000Base-FX, (SFP Slot)

Power supply

(optional)

DC 48V/2.5A,120W suitable for PoE 1-8 port


DC 52V/2.3A,120W suitable for PoE 1-8 port
