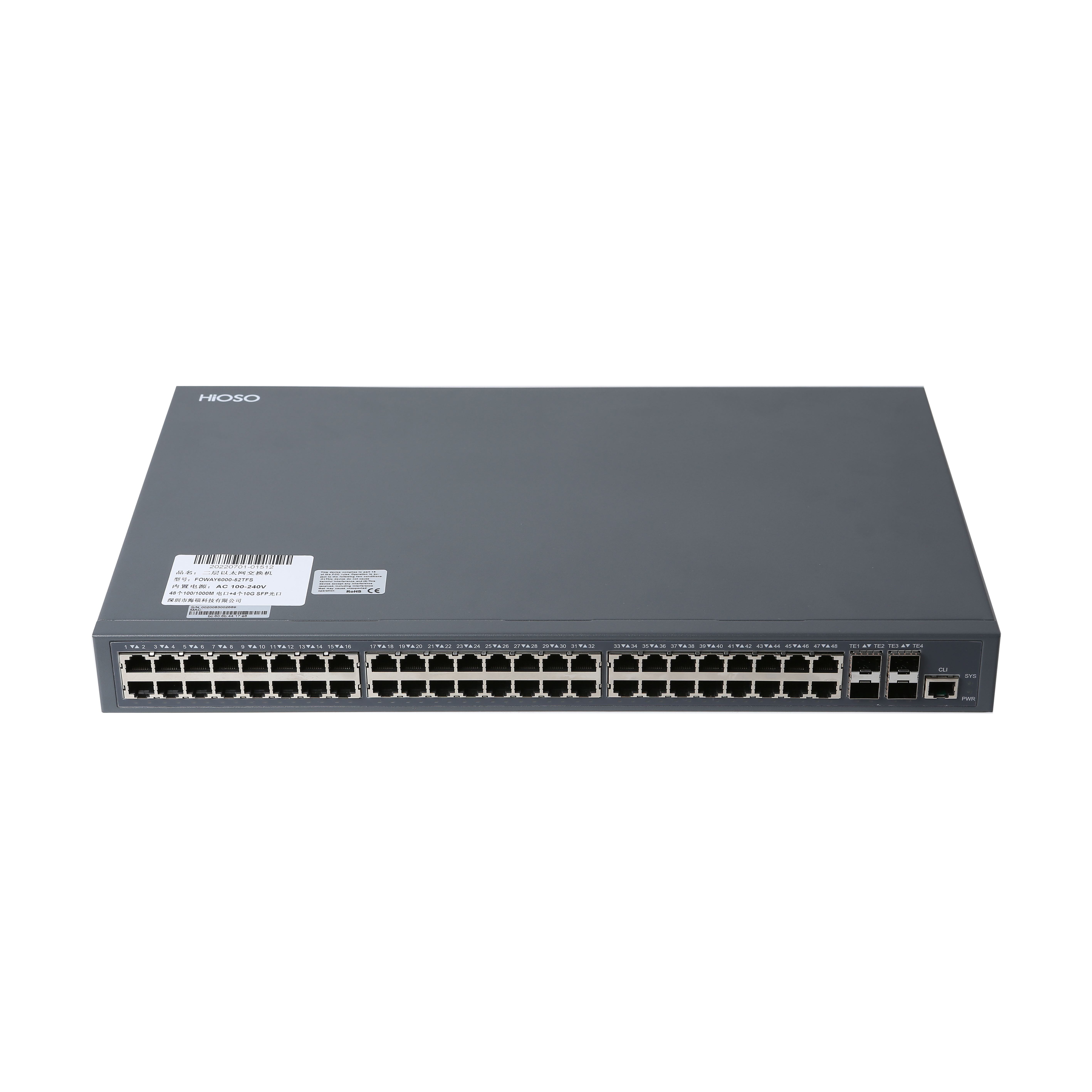

Interface

48 GE TX ports, 4 GE/10GE SFP+ ports

Console

1 RJ45 port

Backplane

176Gbps

Forwarding rate

132Mbps

Chassis

Dimensions(W*D*H)mm    440*280*44

Weight（KG)empty         3.8

Package

Dimensions(W*D*H)mm    576*448*94

Weight（KG)empty         5

Power Consumption

no load   <22W

full load   <40W

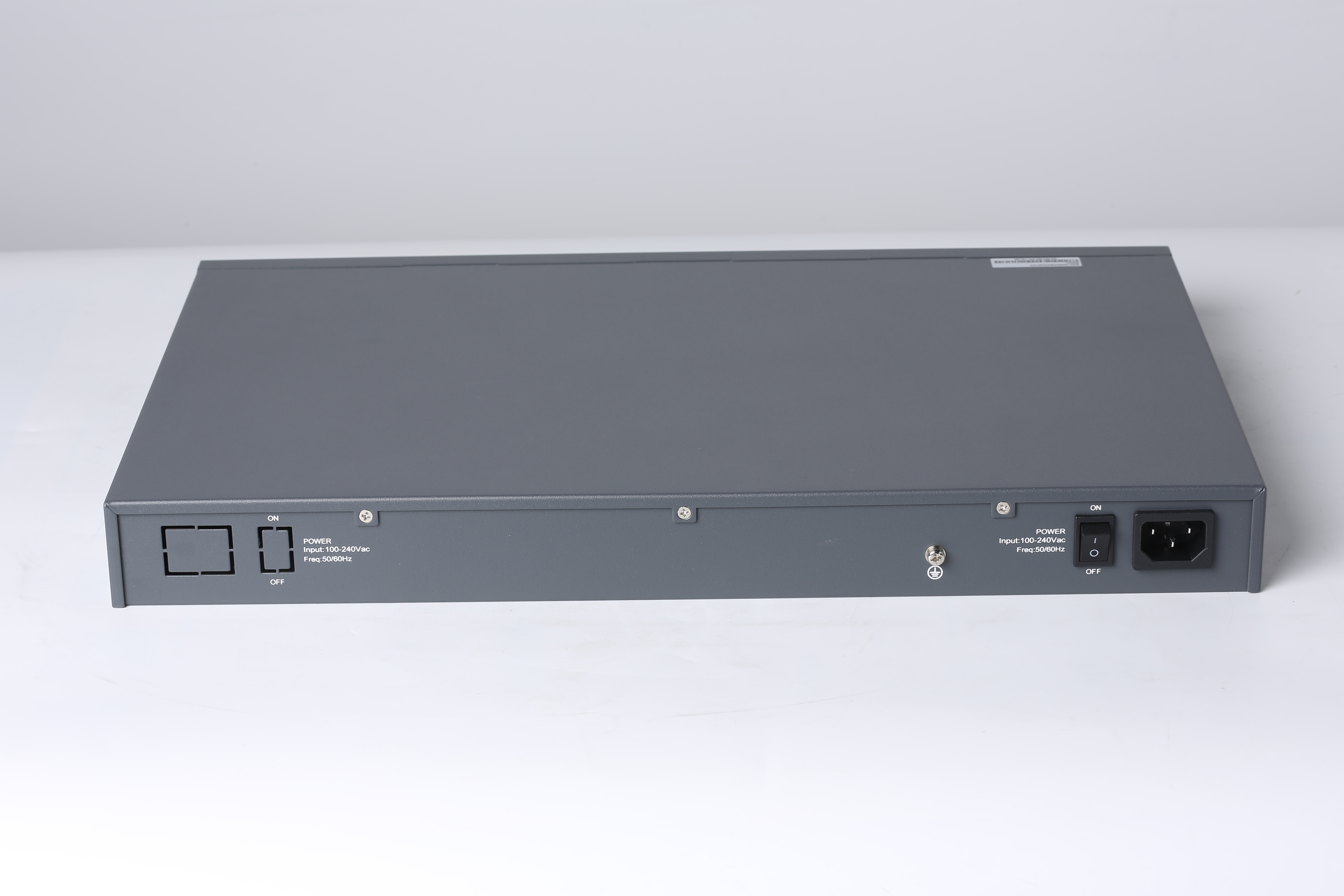

Power supply

AC: 100-240V

POE power budget

N/A

Total output BTU

(1000BTU/H=293W) 255.97

Fan number

2

Noise@25°C(DBA)

45

MTBF(H)

> 50,000

Forwarding mode

Store-forward

Flash (MB)

16

DRAM (MB)

256

MAC

32K

Buffer size(MB)

4

Jumbo frame

9K

Total SVI

10

VLAN

4K Active VLAN, QinQ &

Selective QinQ, GVRP, Private VLAN, Voice-VLAN

Spanning Tree

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU guard, root guard and loopback guard

Multicast

IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

IP

Static route, IPv4/v6 dual

QoS

CAR, HQoS, MAC/IP/TCP/UDP/

VLAN/ COS/ DSCP/ TOS based

QoS, 802.1P/ DSCP priority re-

labeling, SP, WRR, and “SP+WRR”,

Tail-Drop, WRED, flflow monitoring

and traffific shaping

Reliability

Static/LACP link aggregation,

Interface backup

EAPS and ERPS

ISSU uninterrupted system upgrade

Security

Port isolation, Port security, and

“IP+MAC+port” binding, MAC sticky

DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,

IEEE 802.1x, Radius and BDTacacs+

L2/L3/L4 ACL flflow identifification  and fifiltrationAnti-attack from DDoS,

TCP’s SYN Flood, UDP Flood, etc.

Broadcast/multicast/unknown  unicast storm-control

MD5, SHA-256, RSA-1024, AES256, etc

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS

SNMP v1/v2/v3, RMON  TFTP, FTP, SFTP

NTP   ZTP (Zero Touch Provisioning(S2936F)

SPAN, RSPAN

Environment

Operating temperature/humidity:

0℃ -50℃ ,10%-90% non-condensing

· Storage temperature/humidity:

-20℃ -70℃ , 5%-95% non-condensing
