Model

FOWAY7508

General

Standard and Protocols

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX/FX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3ae 10GBASE-SR/LR

IEEE 802.3av GVRP

IEEE 802.3x Flow control

IEEE 802.3ad Link Aggregation

IEEE 802.1v Protocol VLAN

IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLANs / VLAN tagging

IEEE 802.1x Network Login Security

IEEE 802.1p QoS

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF

10GBASE-LR

10GBASE-SR

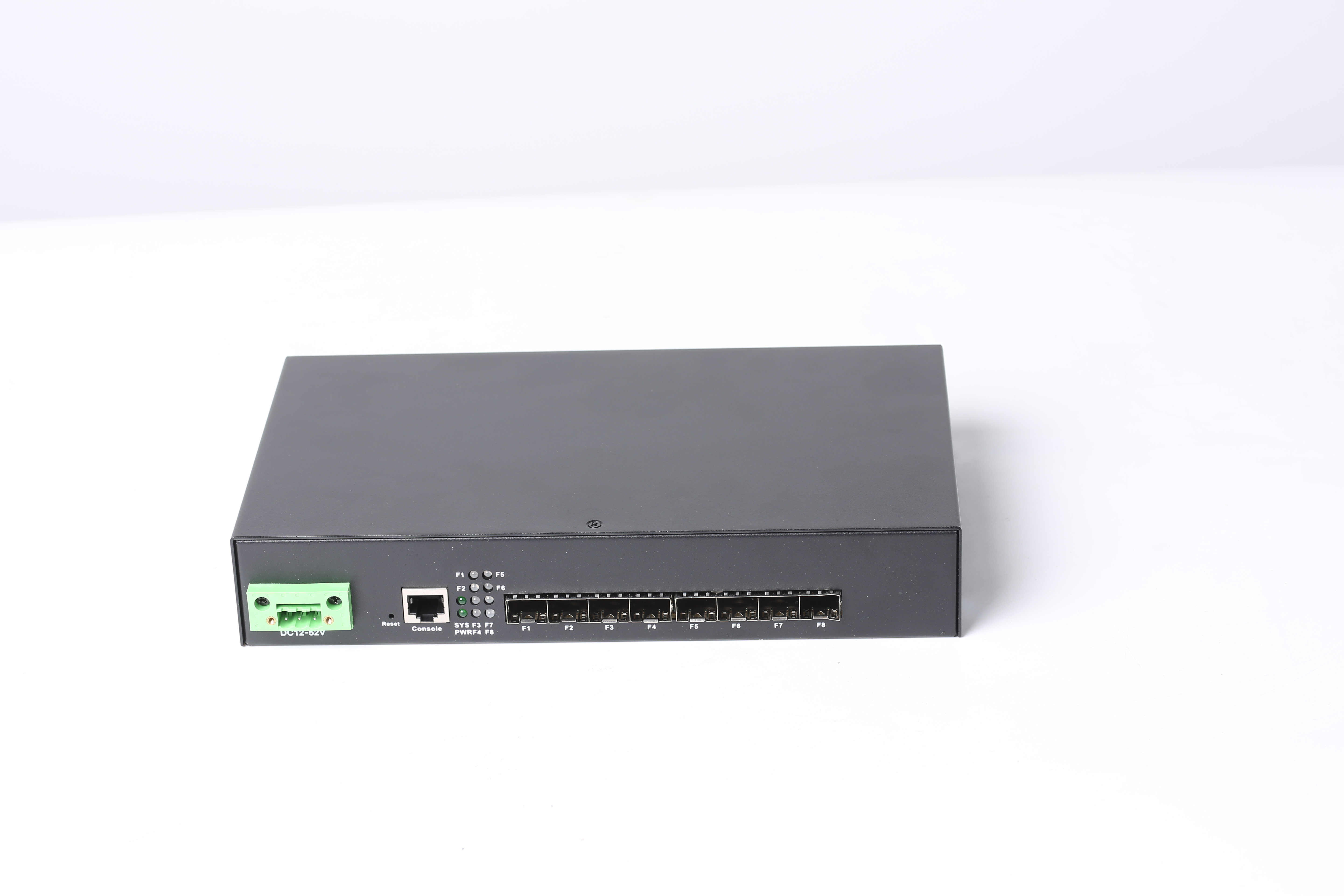

Interfaces

8 10G SFP+Slots

1 RJ45 Console Port

Performance

Switching Capacity

160Gbps

Packet Forwarding Rate

120Mpps

MAC Address Table

16K

Flash memory capacity

256MB

The memory capacity

2G

Jumbo Frame

12KB

Physical& Environment

Certification

CE, FCC

Power Supply

DC10-52V

Max Power Consumption

<10W

Max Heat Dissipation

220.69 BTU/h

Dimensions (W × D × H)

253 × 150 × 44 mm

Fan Quantity

2 removable fan module

Operating Temperature

0°C~50°C (32°F~104°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Operating Humidity

10% ~ 90%RH, non-condensing

Storage Humidity

5%~90%RH, non-condensing

Software Features

L3 Features

-L3 Routing

*128 IPv4 Interface entries

*256 IPv4 Static Routing entries

*8K IPv4 Dynamic Routing entries

-RIP v1, v2

-OSPF v1, v2，V3

-IGMP v1, v2, v3

-Multicast Routing

*Static Multicast Route

*PIM-DM/SM

-ARP Proxy

-DHCP Server/Relay

-VRRP

-BFD

L2 Features

-Link Aggregation

*static link aggregation

*802.3ad LACP

*Up to 64 aggregation groups, containing 8 ports per group

-Spanning Tree Protocol

*802.1D STP

*802.1w RSTP

*802.1s MSTP

*32 MSTP Instance

*STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect

-Loopback Detection

-Flow Control

*802.3x Flow Control

-Port Mirroring

*One-to-One

*Many-to-One

*Flow-Based

*Tx/Rx/Both

-LLDP, LLDP-MED

L2 Multicast

-1024 IGMP groups

-IGMP Snooping

*IGMP v1/v2/v3 Snooping

*IGMP Fast Leave

*MVR

*IGMP Snooping Querier

*Limited IP Multicast

*Static Multicast Forwarding

-MLD Snooping

*MLD v1/v2 Snooping

*MLD Snooping Querier

*Fast Leave

*Limited IP Multicast

*Static Multicast Forwarding

VLAN

-VLAN Group

*4K VLAN Groups

-802.1Q tag VLAN

-MAC VLAN

-Protocol VLAN

-VLAN VPN (QinQ)

-GVRP

-Private VLAN

QoS

-Class of Service

*Port Priority

*802.1p CoS/DSCP priority

*8 Priority Queues

*Queue Schedule Mode

-Bandwidth Control

*Port/Flow based Rating Limiting

*Storm Control

-Diffserv

*Diffserv Class

*Diffserv Policy

*Diffserv Service

-Auto-VoIP

-Voice VLAN

ACL

-Supports up to 3328 entries

-MAC ACL

*Source MAC

*Destination MAC

*VLAN ID

*User Priority

*EtherType

-Standard IP ACL

*Source IP

*Destination IP

-Time based ACL

-Extended IP ACL

*Source IP

*Destination IP

*Fragment

*IP Protocol

*TCP Flag

*TCP/UDP Port

*DSCP/IP TOS

Security

-AAA

-DHCP Snooping

-IP-MAC-Port Binding:Up to 32768 entries

-ARP Inspection:Up to 32768 entries

-IP Source Guard:Up to 1020 entries

-Static/Dynamic Port Security

-Up to 64 MAC addresses per port

-Broadcast/Multicast/Unicast Storm Control

*kbps/ratio/pps control mode

-IP/Port/MAC based access control

-DoS Defend

-802.1X

*Port based authentication

*MAC(Host) based authentication

*Guest VLAN

*Support Radius authentication and accountability

-Port Isolation

-MAC Filtering

-Secure web management through HTTPS with SSLv3/TLS1.0

-Secure Command Line Interface(CLI) management with SSHv1/SSHv2

Management

-Web-based GUI

-Command Line Interface(CLI) through console port, telnet

-SNMPv1/v2c/v3

-SNMP Trap/Inform

-RMON (1,2,3,9 groups)

-DHCP Option82

-CPU Monitoring

-Cable Diagnostics

-Access Control

-SNTP

-System Log

-Dual Image

-IPv6 Management

-PPPoE Circuit ID

-HTTP/TFTP File Transfer

MIBs

-MIB II (RFC1213)

-Interface MIB (RFC2233)

-Ethernet Interface MIB (RFC1643)

-Bridge MIB (RFC1493)

-P/Q-Bridge MIB (RFC2674)

-RMON MIB (RFC2819)

-RMON2 MIB (RFC2021)

-Radius Accounting Client MIB (RFC2620)

-Radius Authentication Client MIB (RFC2618)

-Remote Ping, Traceroute MIB (RFC2925)

-Support TP-Link private MIBs
