24 10GE/GE SFP+ ports, 4 100GE/40GE QSFP 28 ports

flexible bandwidth control policies, supporting port-/flow-based flow limit, ensuring the line speed forwarding of each port. multiple queue schedule algorithms such as SP, WRR and “SP + WRR”. Management modes such as the CLI, Telnet, SSH, SSL and SN

Version:FOWAY7500-28XQ

Color:Black

Battery:AC100-240V

Function:

Accessories:

Online consultation

Service hotline::

0086-0755-83128820

Product Description Specification

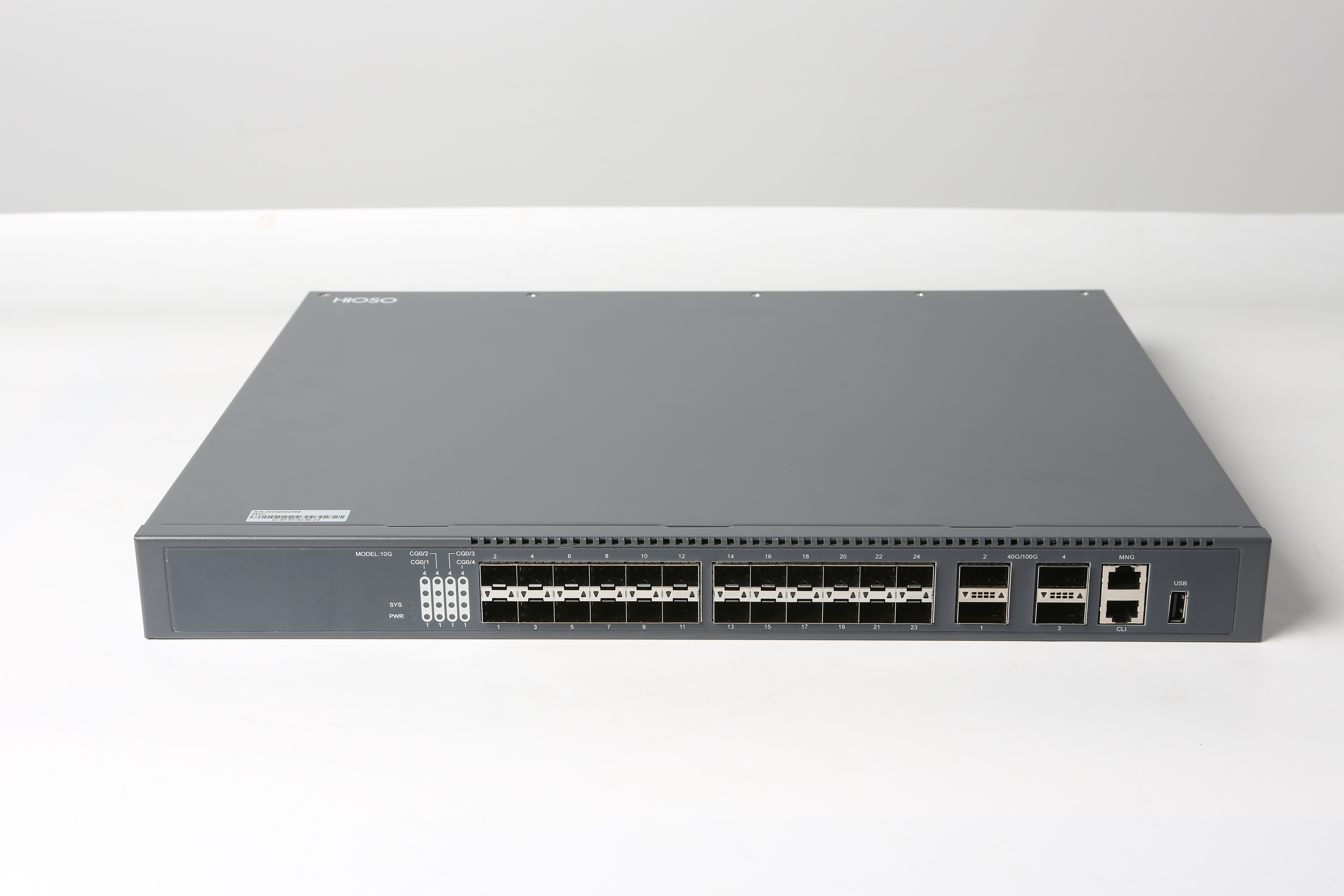

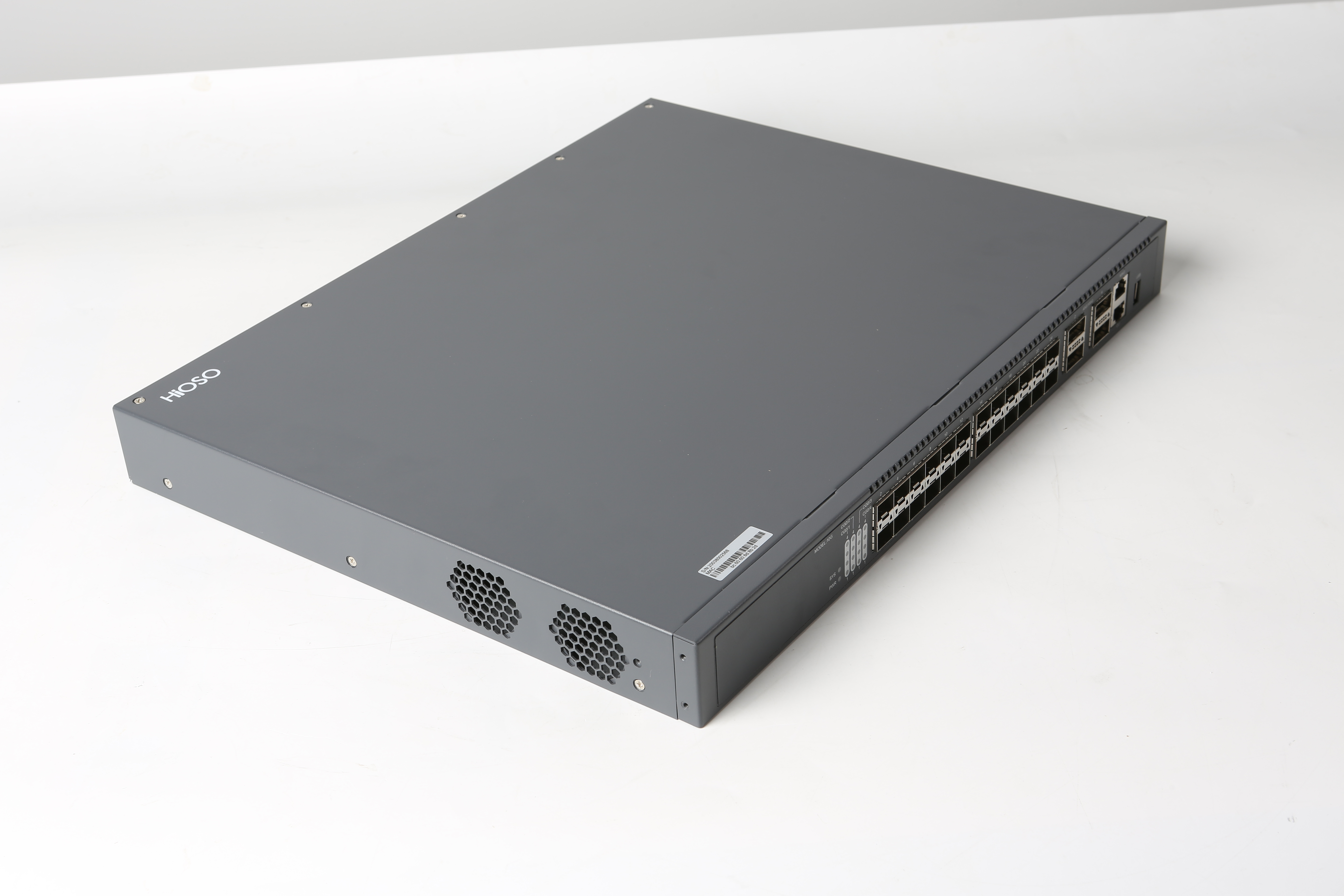

FOWAY7500-28XQ ,is a 28ports fiber swith, with 24 10G SFP+ ports and 4 40GE/100GE QSFP port. with High-reliability,high-performance, high-security and multi-service.

It has advanced hardware design with hot-swapped power redundancy. Advanced non-blocking array exchange and huge packet cache support smooth operation at the extreme circumstance. It is for IP MAN convergence layer and large-scale enterprise zone or the core of the network layer.

FOWAY7500-28XQ series supports storm/multicast/unicast limit, ensuring the normal running of equipment in harsh network conditions.FOWAY7500-28XQ series supports perfect ring detection mechanism, ensuring the long-term stable running of network. FOWAY7500-28XQ series supports port isolation within the same VLAN, DHCP-Snooping, and IP + MAC + Port binding.

Based on the advanced distributed processing technique and the efficient function of cross-physical device link aggregation, FOWAY7500-28XQ Series provides with non-stop layer-3 routing forwarding and avoids single points of failure.


Technical Specification

Parameter

Specification

Port

24 10GE/GE SFP+ ports, 4 100GE/40GE QSFP28 ports

Management port

1 RJ45 console, 1 MGMT

Backplane capacity

800Gbps

Throughput (IPv4/IPv6)

600Mpps

Memory and storage

1024MB  DRAM Memory and 32MB Flash Memory

Total output BTU

(1000BTU/H=293W)

238.91

Redundancy design

1+1 hot-swap redundant power

Fan number

4

Noise@25°CdBA)

57

MTBF(H)

>100,000

Jumbo frame

9K

Routing  table

IPV4:16K;     IPV6 ;12K

ARP table

IPV4:10K;     IPV6 ;10K

Total SVI

1k

Power supply

ACInput 100240V5060Hz DCInput -36V-72V

Power consumption

Full-load ≤70W

Outline dimensions

440mm*350mm*44mm  (W*D*H)

Weight

≤8kg

Environmental

requirements

Working temperature-10°C50°C

Relative humidity10%90%no condensing
