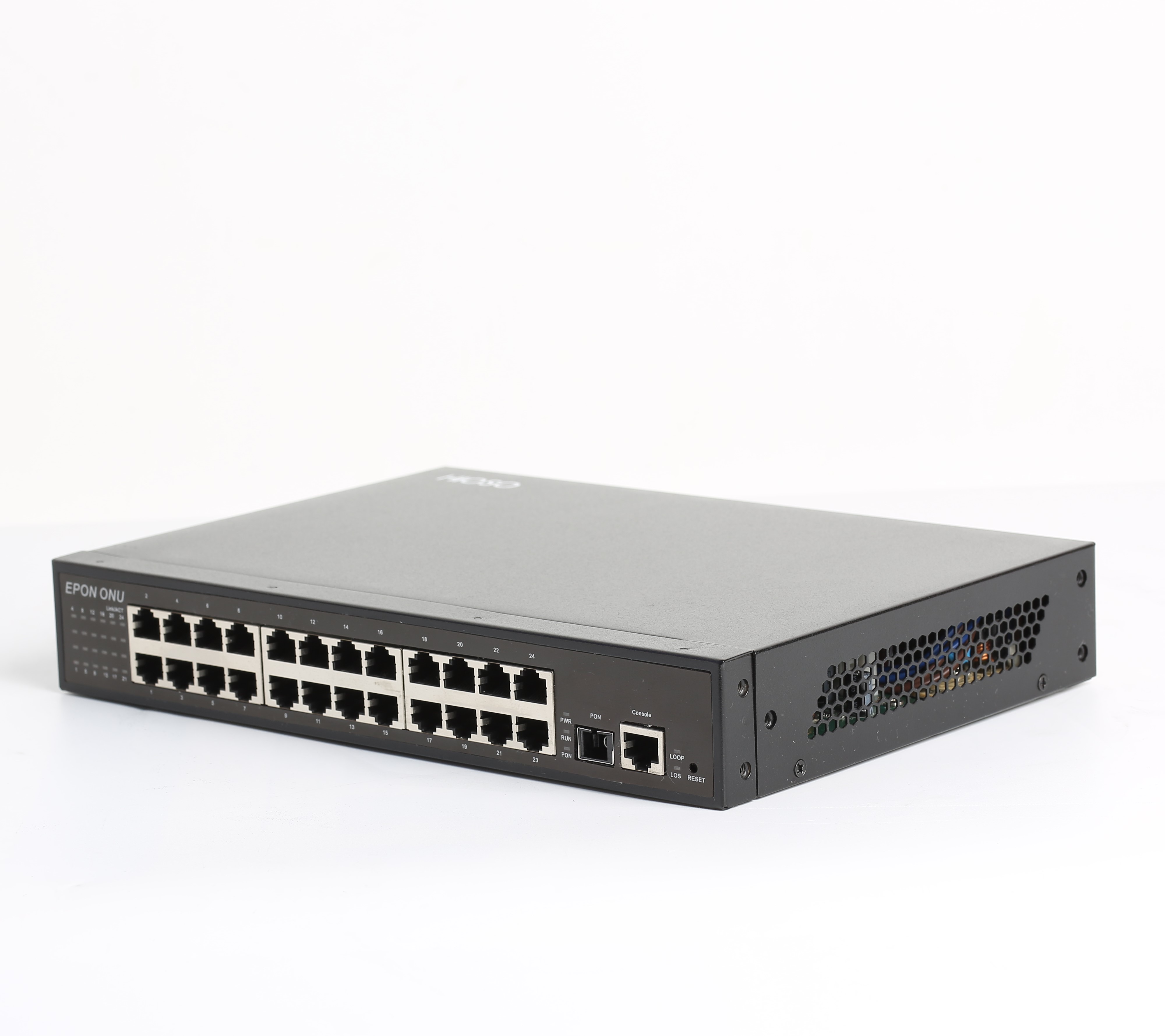

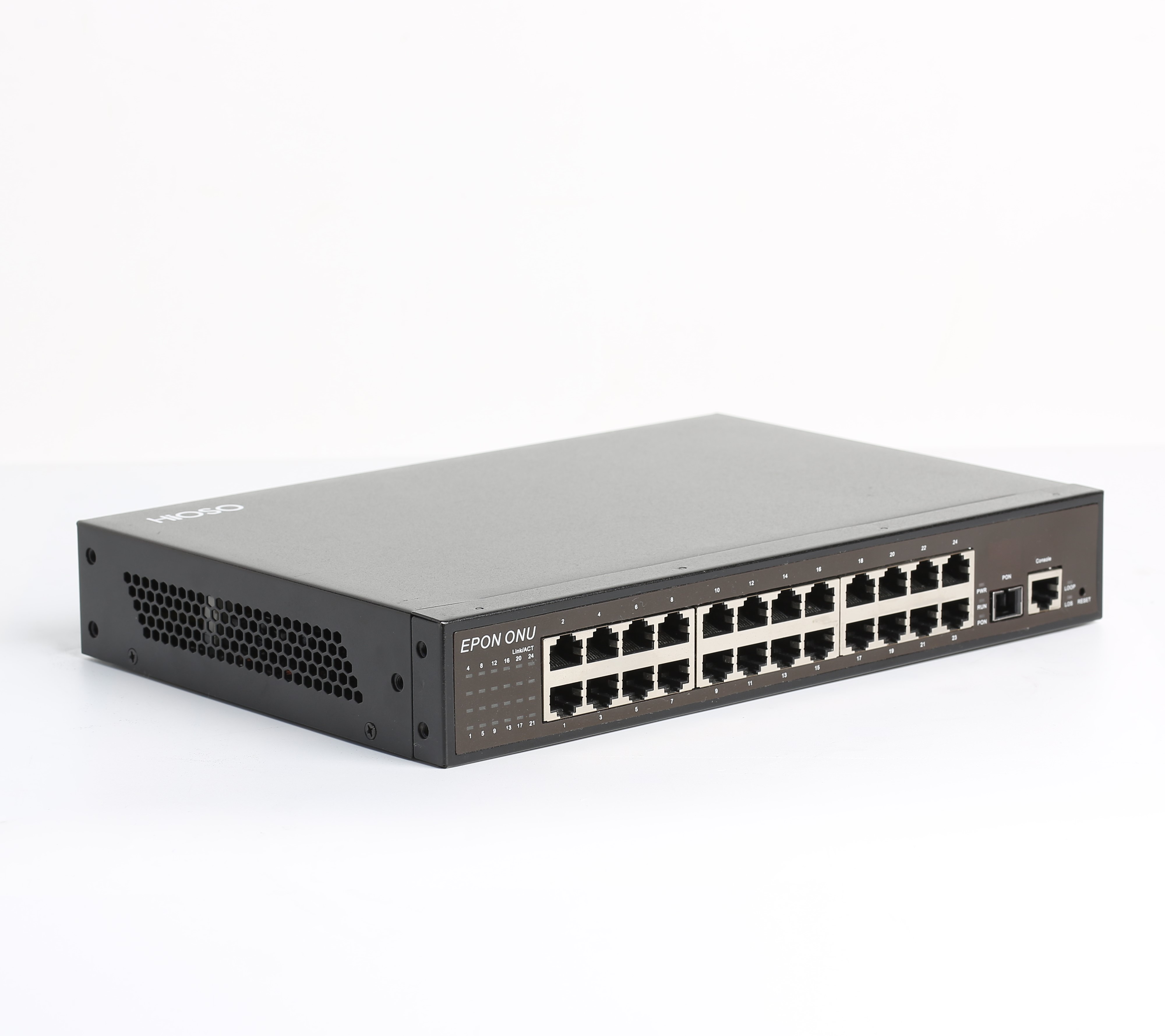

Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports

Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports

Version:HA7224

Color:Black

Battery:AC220V

Function:FTTX,FTTH Solutions

Accessories:

Online consultation

Service hotline::

0086-0755-83128820

Product Description Specification

24 Port Epon Onu 24 10 / 100M Ethernet Ports Industrial Supply Ftth Olt



Feature


Technical Specification

ParameterSpecification
Wavelength1310(TX)/1490(RX)
Optical power-1~+4dBm
Receiving sensitivity-25dBm
Maximum distance20km
Cache space1.25MB
MTBF100000 hours
PON portSC/PC
EPON Feature

Apply to IEEE802.3ah

Support DBA

Support auto discovery and auto register

Standards

Support IEEE802.3, IEEE802.3u

Support IGMP Snooping V2

SupportIEEE802.1Q VLAN

SupportIEEE802.1P QoS

ManagementCooperate with OLT, to upgrade and manage the ONU





Working Environment

ParameterSpecification
Power supplyAC110~220V@50 /60HZ
Power consumption18W
Working temperature-10~55℃
Storage temperature-40~70℃
Humidity5%~90% non-condensing
Dimension44mm(H) ×310mm(W) ×161mm(D)
