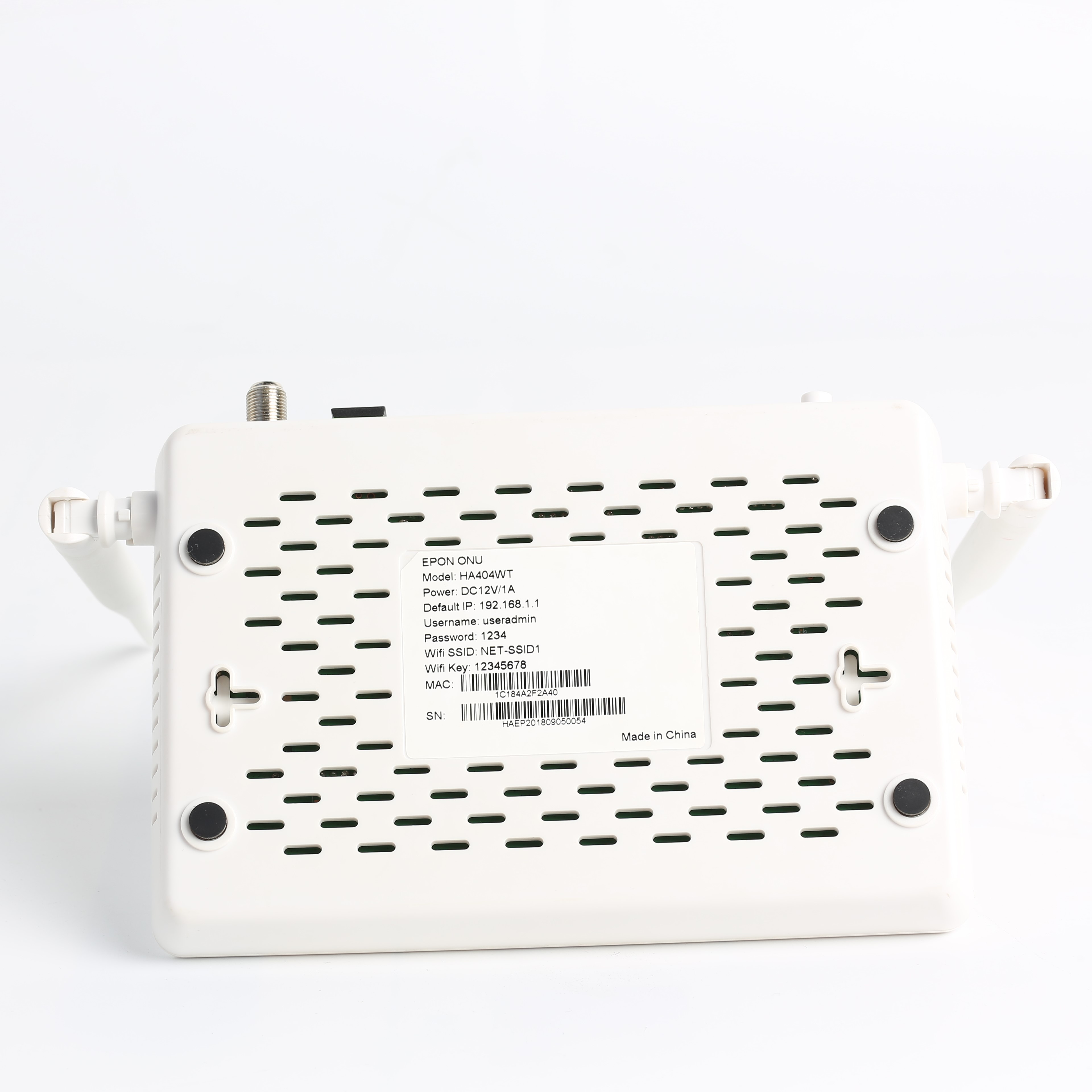

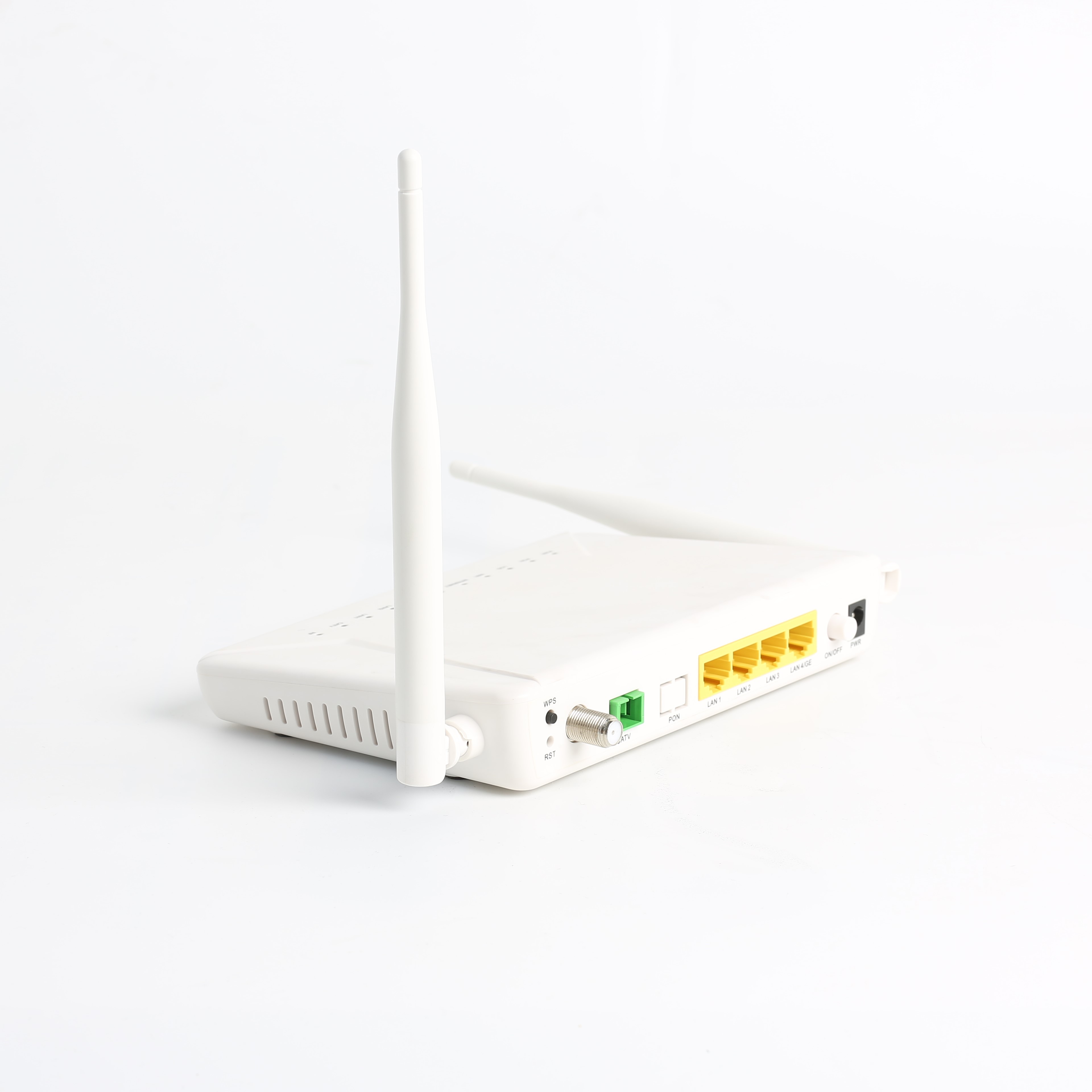

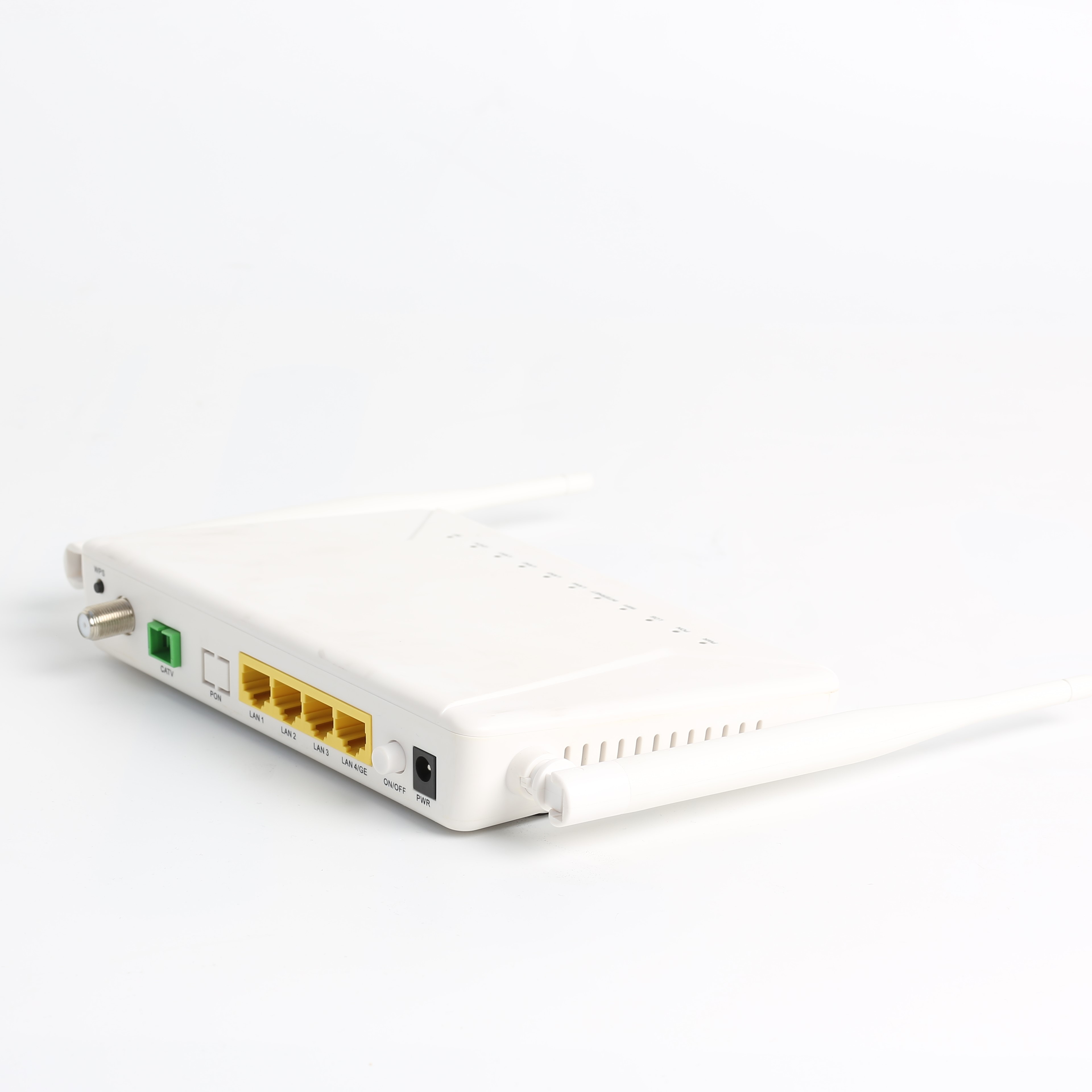

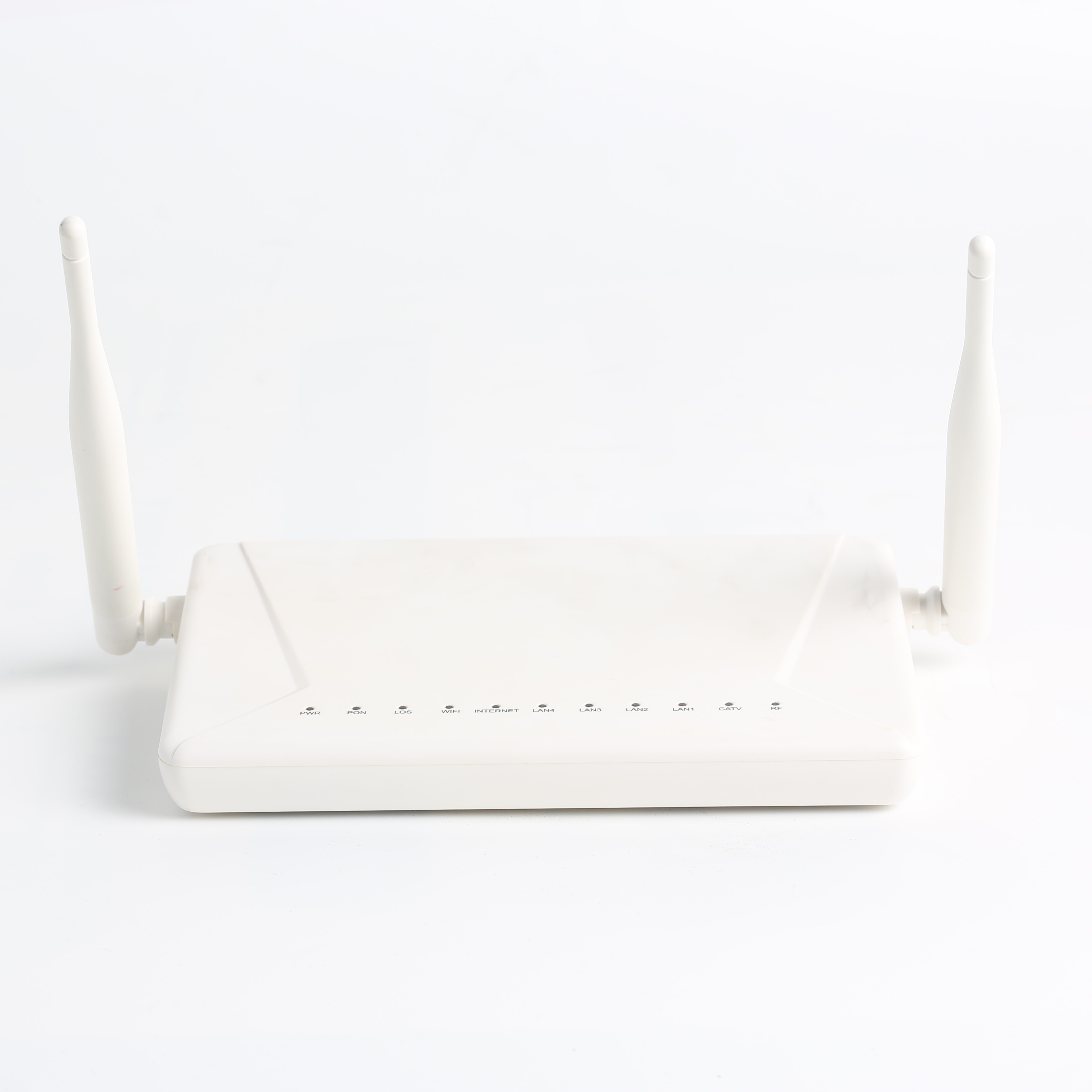

EPON ONU 1G + 3FE + 1GE + CATV + WiFi xpon onu

1G + 3FE + 1GE + CATV + WiF onu suitable for ftth solutions

Version:HA404WT

Color:White

Battery:DC12V/1A

Function:FTTX,FTTH Solutions

Accessories:

Online consultation

Service hotline::

0086-0755-83128820

Product Description Specification

Feature

* Support EPON/GPON mode and switch mode automatically
* Support ONU auto-discovery/Link detection/remote upgrade of software
* WAN connections support Route and Bridge mode
* Route mode supports PPPoE/DHCP/ static IP
* Support WIFI Interface and multiple SSID
* Support CATV interface for Video Service and control by OLT
* Support QoSand DBA
* Support port Isolation and port vlan configuration
* Support Firewall function and IGMP snooping/Proxy multicast feature
* Support LAN IP and DHCP Server configuration
* Support Port Forwarding and Loop-Detect

* Support TR069 remote configuration and maintenance


Parameter
Specification
PON Interface
1 G/EPON port(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC Connector
LAN Interface
1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
CATV Interface
RF, WDM ,optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: 0~-15dBm
MER: ≥32dB@-15dBm
Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED
11 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、Worn、 Normal(CATV)
Push-Button
3,For Function of Reset, WLAN, WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply
DC 12V/1A
Power Consumption
≤6W
Dimension
155mm×92mm×34mm(L×W×H)
Net Weight
0.24Kg
