1 port ge ONU EPON XPON

1 port ge ONU EPON XPON

1

Version：ONU - HA411GSX

Color：White

Battery：DC12V

Function：FTTX,FTTH Solutions

Accessories：

Online consultation

Service hotline:：

0086-0755-83128820

Product Description Specification

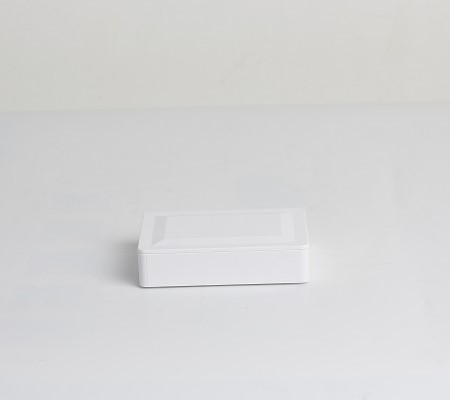

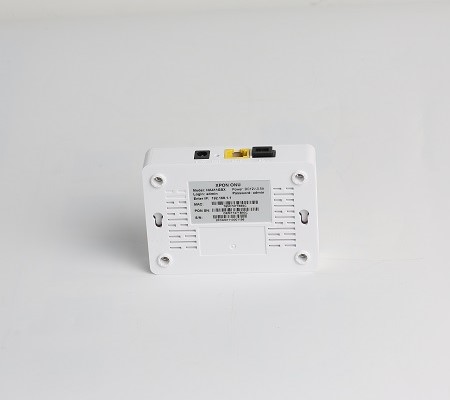

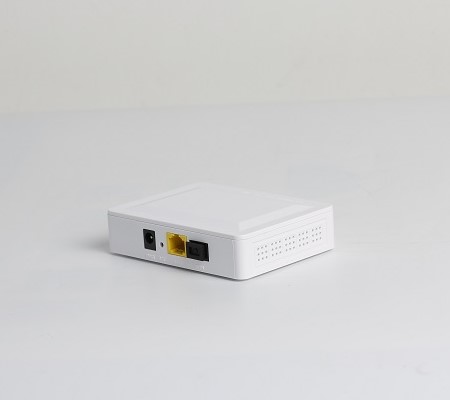

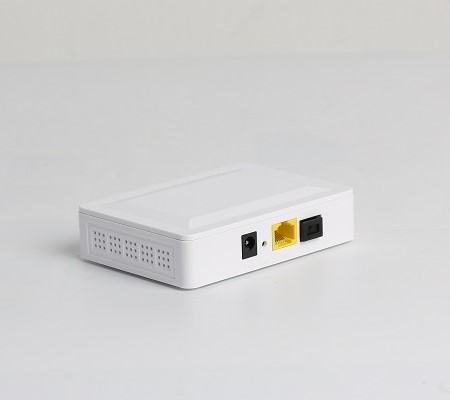

HA411GSX plastic Casing ONU


Feature

(1)Support EPON/GPON mode and switch mode automatically

(2)Support ONU auto-discovery/Link detection/remote upgrade of software

(3)Support Route PPPoE/DHCP/Static IP and Bridge mode

(4)Support IPv4/IPv6 dual mode

(5)Support  Firewall function and IGMP multicast feature

(6)Support  LAN IP and DHCP Server configuration


Technical Specification
Technical item
Details
PON Interface
1 GPON
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC/UPC Connector
Chip Spec
RTL9601D ,CPU 300MHz,DDR2 32MB
Flash
SPI Nor Flash 16MB
LAN Interface
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
LED
4 LED, For Status of PWR、LOS、PON、LINK/ACT
Push-Button
2,For Function of Power on/off,Reset
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply
DC 12V/0.5A
Power Consumption
<3W
Dimension
120mmx78mmx30mm(L×W×H)
Net Weight
0.08Kg


Working Environment

Pilot
Status
Description
PWR
On
The device is powered up.
Off
The device is powered down.
PON
On
The device has registered to the PON system.
Blink
The device is registering the PON system.
Off
The device registration is incorrect.
LOS
Blink
The device doses not receive optical signals.
Off
The device has received optical signal.
LINK/ACT
On
Port is connected properly (LINK).
Blink
Port is sending or/and receiving data (ACT).
Off
Port connection exception or not connected.
