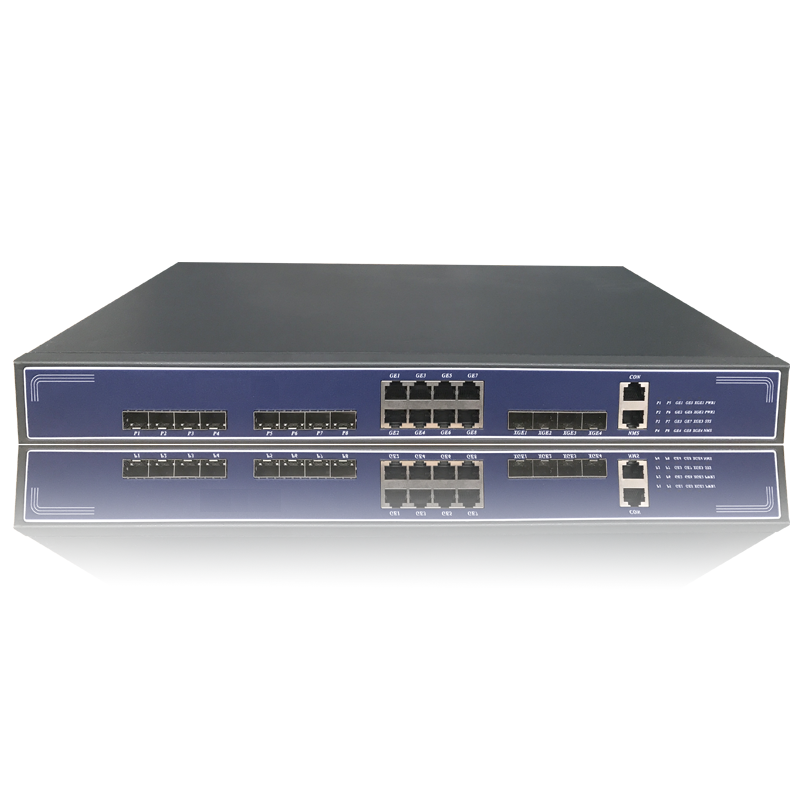

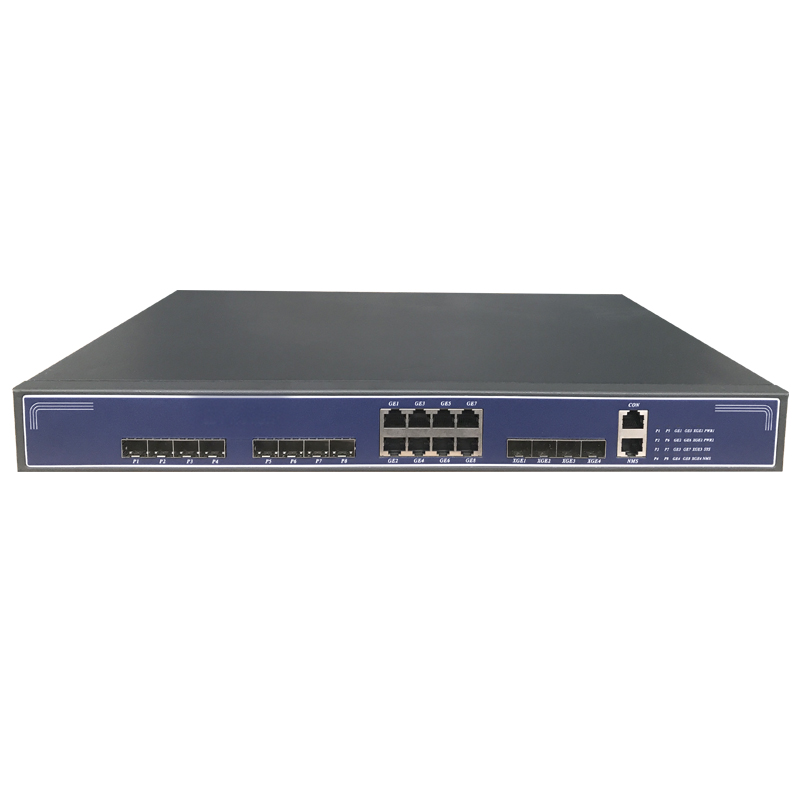

16pon GPON OLT

HA7316GF GPON OLT provides 16 GPON ports, 8GE copper RJ45 Ethernet ports and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devi




Function:FTTX,FTTH Solutions

Accessories:SFP module,Plug,Rack

Online consultation

Service hotline::


Product Description Specification





HA7316GF GPON OLT provides 16 GPON ports, 8GE copper RJ45 Ethernet ports  and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.


HA7316GF OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.


Independent 1U chassis equipment with 16 PON ports, each port supports up to 128 ONUs, the whole device supports up to 2048 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.

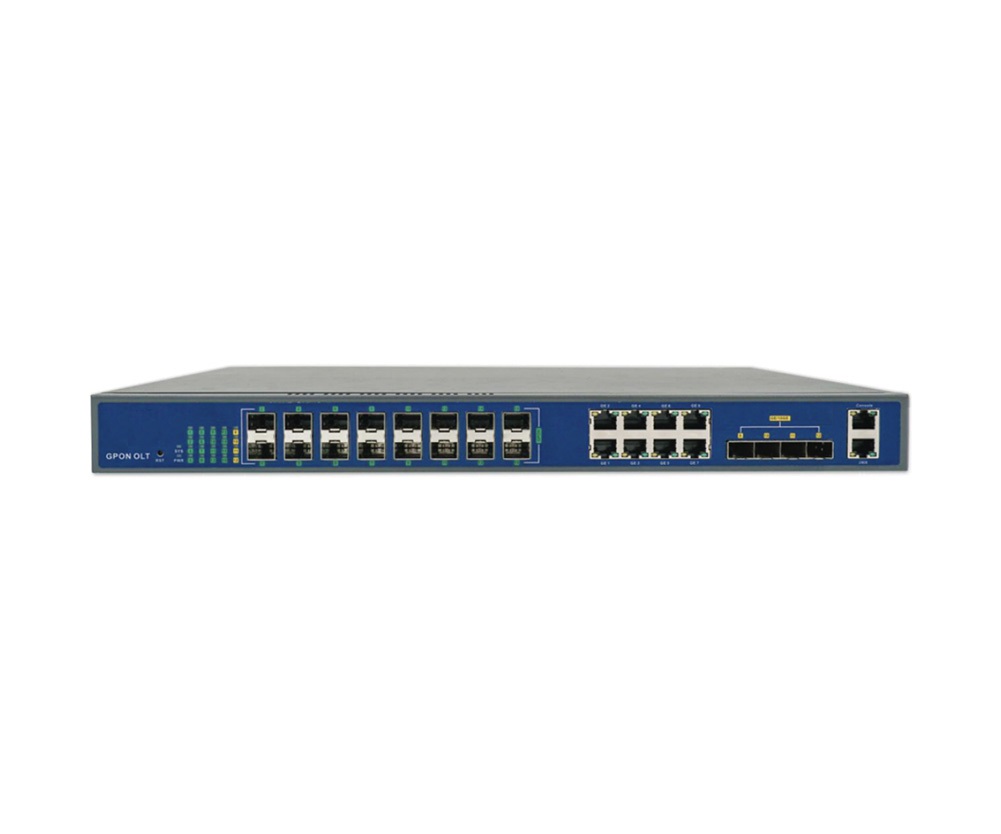

1U 19 inch standard box GPON OLT with 16 PON ports

Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements

L3 function, support static route, RIP v1/v2, OSFP v2, ARP proxy

Tcont DBA, Gemport traffic

QoS based on port, VID, TOS and MAC address

Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ

Support IGMP snooping, 256 IP Multicast Groups, IGMP Proxy

Support 802.1D and 802.1W

Support static LACP

Specialized design for system breakdown prevention to maintain stable system

Support port-based rate limitation and bandwidth control

Support data encryption, multi-cast, port VLAN, separation, RSTP, etc

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/link detection/remote upgrade of software

Support ONT automatically discovery, auto configuration

Support ONT firmware can be auto upgraded, download ONT firmware to OLT from web/tftp/ftp

Support SNMP, telnet, CLI, OMCI/OAM and Web management

Support ACL and SNMP to configure data packet filter flexibly

Support broadcasting storm resistance function

Firewall function

Support remote software upgrade

Two power supply redundancy design to improve reliability

Support power-off alarm function,easy for link problem detection

Support for Industrial Temperature

Technical Specification



PON standard.

GPON ITU-T G.984.x

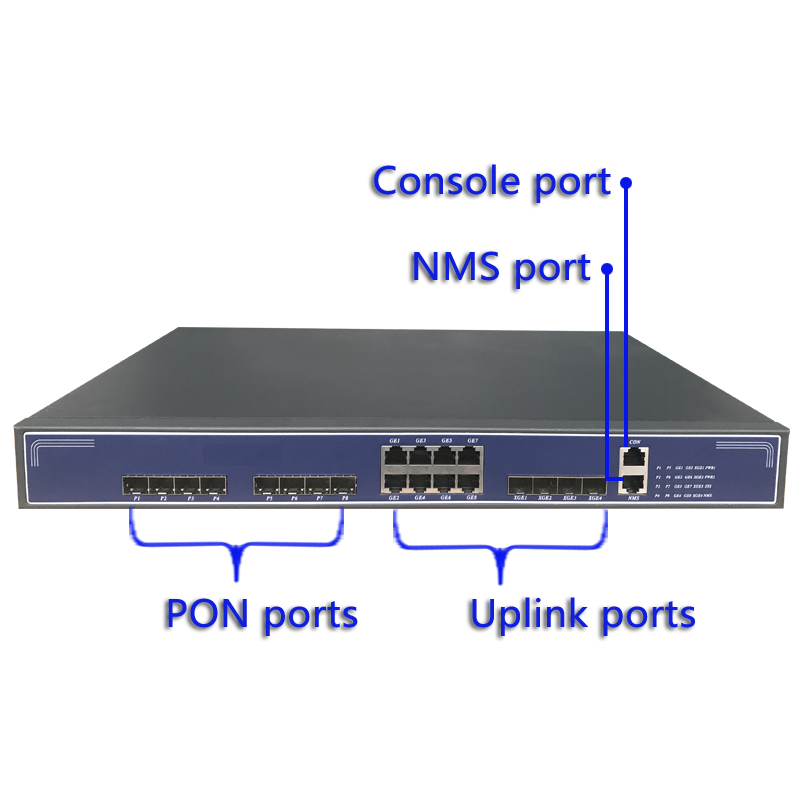

PON interface

16*GPON SFP Ports (Class C+),  Receiving sensitivity:  -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +1 ~ +5dBmTransmission distance: 20KM. Max splitting ratio1:128

Upstream 2.488G

Downstream 1.244G


Tx1310nm, Rx 1490nm


8*copper Ethernet ports 10/100/1000M auto-negotiation

4*GE(SFP)/ 4*10GE (SFP+) auto-detection

Layer 3

Support static route, RIP v1/v2, OSFP v2, ARP proxy

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

Management Mode

SNMP, Telnet, CLI, WEB


Tag / Un-tag,VLAN transmission,QinQ

Operating condition

Operating temp: -5 ℃~ +55℃

Storing condition

Storing temp: -40℃ ~ +85℃



Power consumption




Net weight
