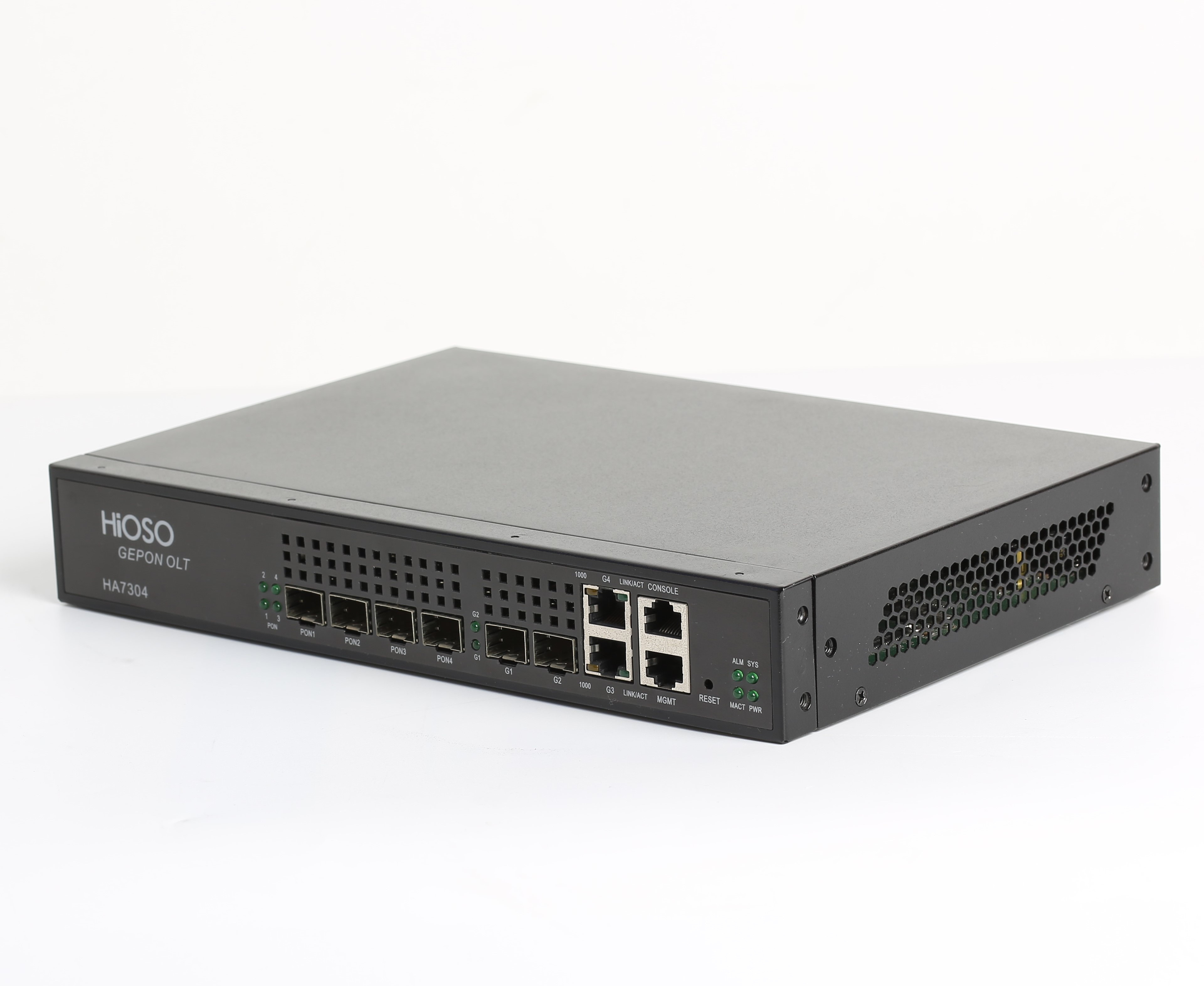

Mini 4 port Epon olt HiOSO

HA7304-Mini 4 ports olt 4 SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports Apply for town,village fiber network and surveillance

Version:OLT - HA7304



Function:FTTX,FTTH Solutions

Accessories:SFPmodule, Rack,Plug

Online consultation

Service hotline::


Product Description Specification
    HA7304 Standalone 4PON OLT
(1)Supply 4 SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports
(2)Each PON port support 1:64 split ratio, total 256 ONUs access
(3)Distance can reach 20km under 1:32 split ratio
(4)Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP
services access

Q: Can you offer Technical Support after purchase?
A: YES, HSGQ technical department will be 24h stand by to solve your concerns.

Q: Do you accept Small Quantity Order?
A: Yes, we do accept a trial order to support you test the quality.

Q: What is your Lead Time for regular items?
A: Normal items, will delivery ASAP after payment 1-5 Days , for OEM / ODM, pls confirm the date with us.

Q: Do you offer Distributorship Abroad?
A: Yes, we are looking for a reliable business partner overseas market, welcomw to be HSGQ Exclusive Agent.

Q: What Payment Term can you provide?
A: Delivery Terms: FOB,CFR, CIF, EXW; Payment Currency: USD, CNY;
Payment Type: T/T,L/C,Western Union,Cash,Escrow;

Q: How about the Shipping?
A: For sample, about 5-7 days by fast delivery
For Mass order, about 15-25 days by sea, air, train shipping (after payment ).

Operating wavelength
1310(RX) /1490(TX)
Optical power
+2.5 ~ +7dBm
Receiving sensitivity
Max distance
Max splitter ratio
4 PON, maximum 256pcs ONU
Uplink port
2 SFP ports + 2 TP ports
PON port
4 SFP PON ports
Control port
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device
1 USB port
100,000 hours

EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)

Protocols supported
Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree
Support IEEE 802.1P QoS、IEEE802.3X Flow Control
Support IEEE802.3ad Trunk、IEEE802.1W RSTP

Network management
Support GUI management based on SNMP
Support WEB and Telnet GUI management based on CLI

Other functions
Support 1GMPv1/v2 protocol report, query and leave message mouse
Support ONU remote configure and upgrade
Support real-time alarm detection, accurate fault location
Support the alarm information sent to the mailbox, support SMS alarm
