HA7304CF

Overview

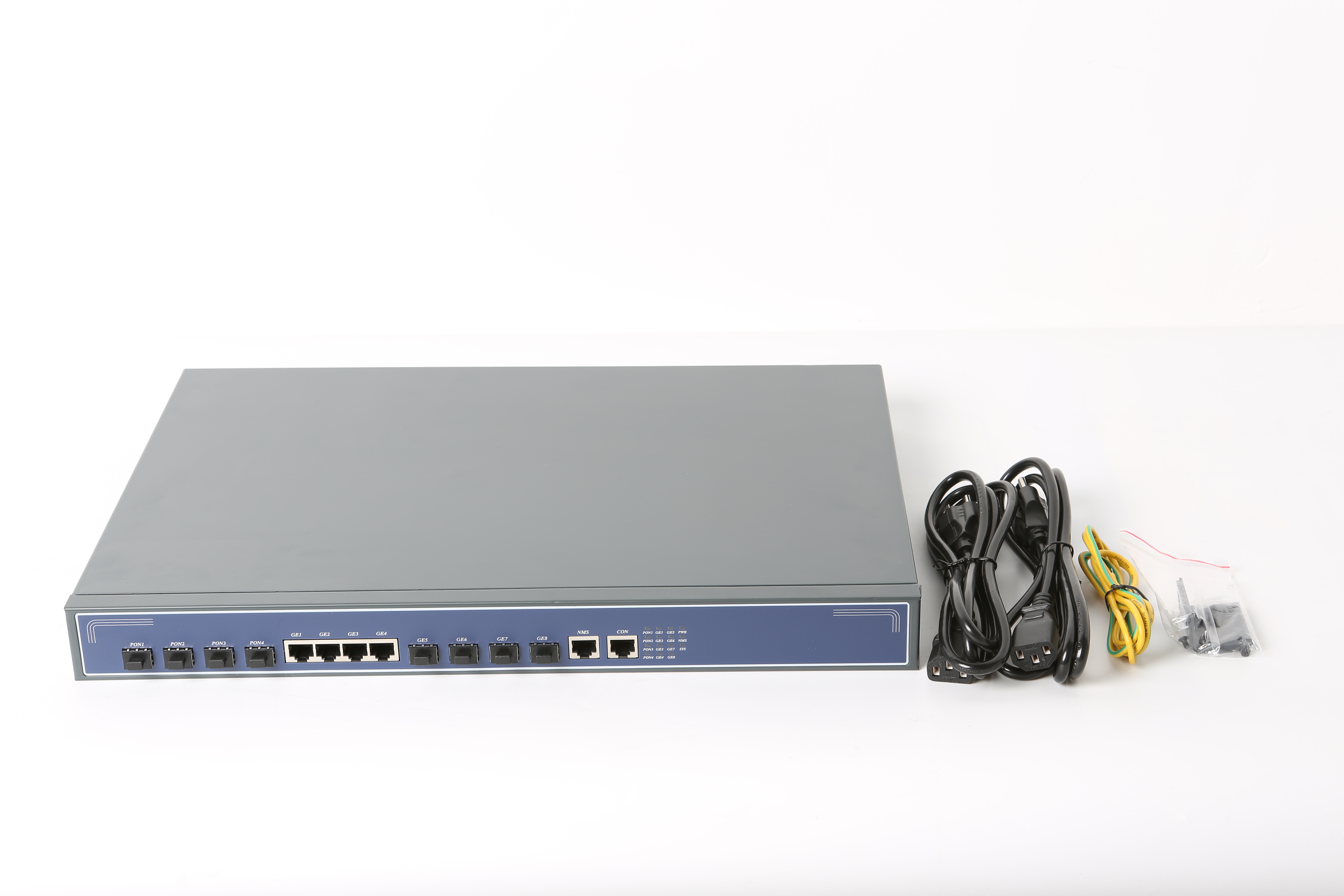

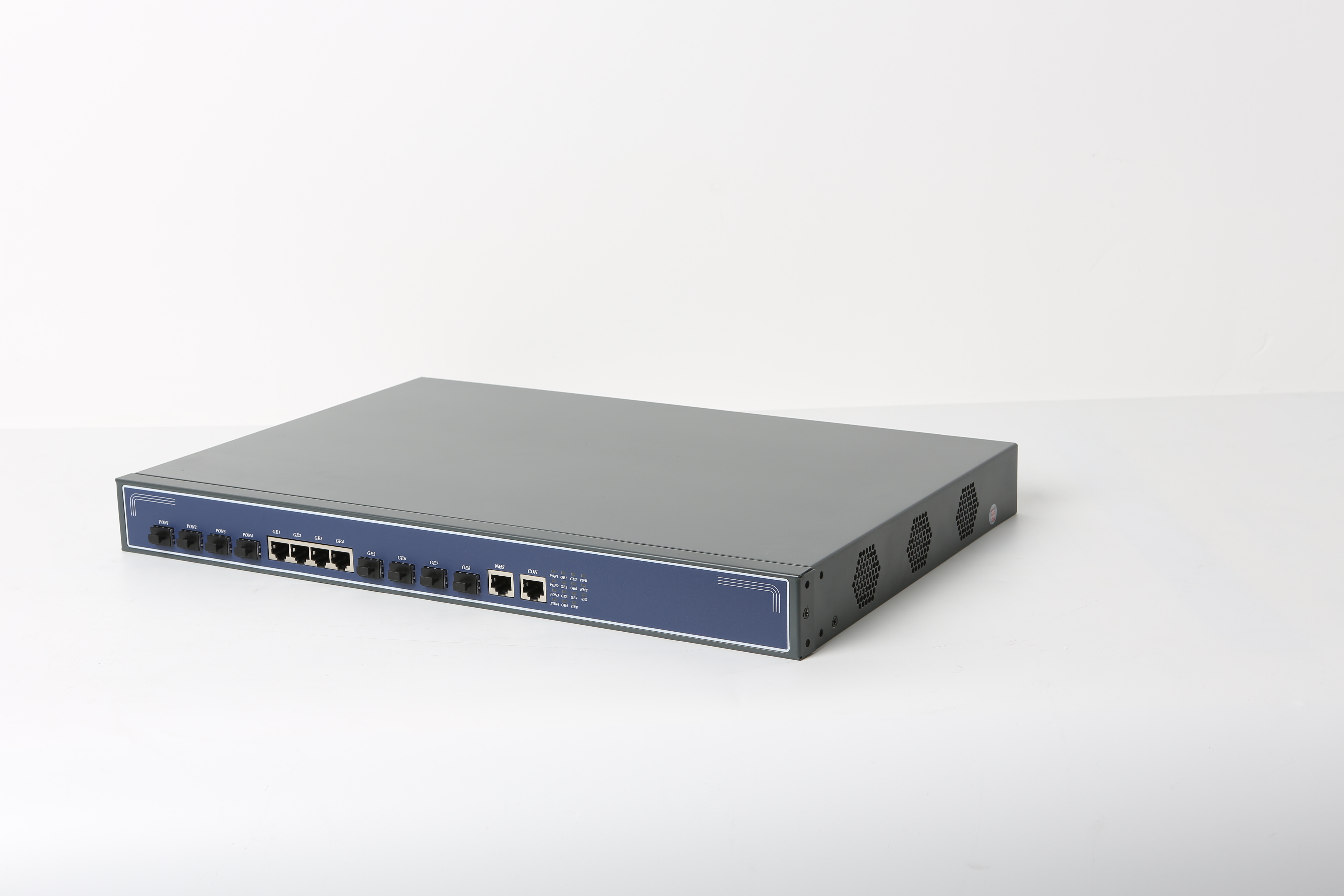

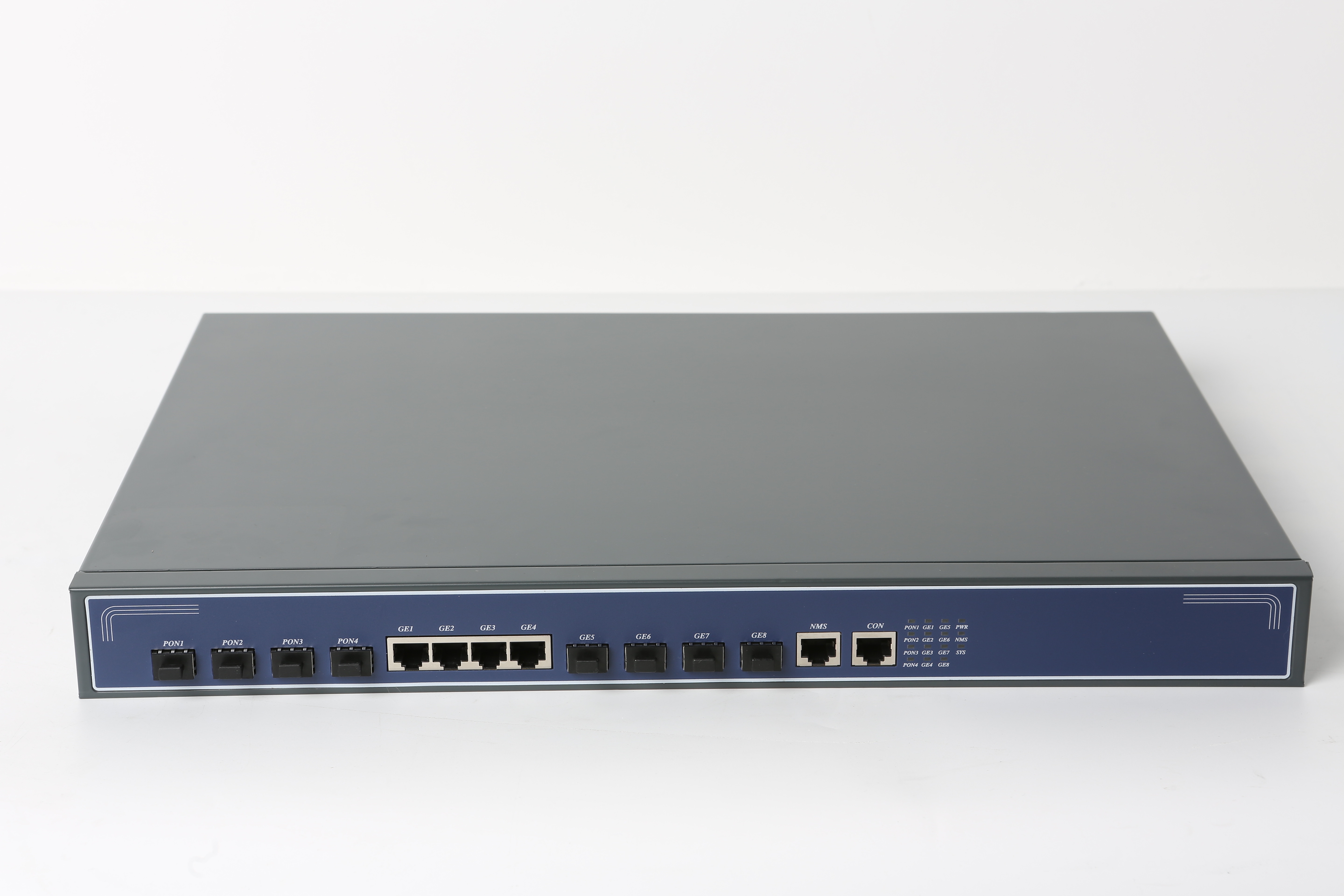

HA7304CF is a 1U rack type 4 PON ports OLT.It supplies 4 PON SFP ports, 4 1000M RJ45 uplink ports, and 4 1000M SFP uplink ports . HA7304CF works with different brands EPON ONUs and XPON ONUs which support CTC stanadard. The whole system supports 4-PON, 256 ONUs.

HA7304CF applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access.

The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television "triple play", the power consumption information collection, video surveillance, networking, private network applications and other applications.

Feature

l Supply 4 SFP PON ports, 4 1000M RJ45 uplink,4 1000M SFP uplink

l Each PON port supports maximum 1.64 split ratio, total 1256 ONUs access

l Distance can reach 20km under 1:32 split ratio

l Support to work with different brands EPON and XPON ONUs to establish passive network

l Support WEB and SNMP and CLI, integrate switching function

l 1U rack design, inside fan, better for heat dissipating and reliability operating

l Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

l Support Dynamic Bandwidth Allocation (DBA)；

l Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure;

l Support 4096 VLAN additions, transparent transmission and conversion, support VLAN stacking (QinQ);

l Support IGMP v1/v2 Snooping and Proxy, support CTC controllable multicast;

l Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm;

l Supports port speed, support packet filtering;port mirroring and port trunking;

l Provide logs, alarms and performance statistics;
